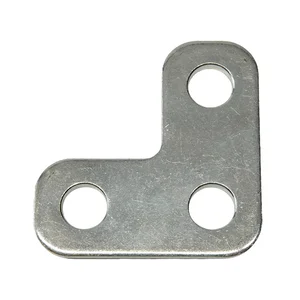

8793 - Egis Mobile Electric Egis L Shaped Busbar Connector - 3 Hole Design

3 Hole L Shaped Busbar Connector

This robust busbar connector is designed to seamlessly link XD Single, Dual, and Triple relays to multiple sealed fuse blocks, allowing for a compact and organized installation. Made from tin-plated copper, it provides reliable circuit connectivity while offering excellent anti-corrosive properties for long-term durability.

Specifications:

• Continuous Current (Amps): 500
• Max Voltage (Vdc): 72
• Material: Tin Plated Copper
• Size: 90mm x 90mm
• Thickness: 2.8 mm (1/8")
• Terminal Stud Hole Size: 10.5mm (3/8")

The Egis L Shaped Busbar Connector (part number 8793) is a specialized accessory for integrating XD Single, Dual, and Triple relays with multiple sealed fuse blocks. This component is designed for IT and electrical professionals requiring a robust and organized power distribution solution within confined spaces. Constructed from tin-plated copper, it offers a continuous current rating of 500 Amps and supports a maximum voltage of 72 Vdc. The L-shaped design, measuring 90mm x 90mm with a 2.8mm thickness, facilitates compact installations by allowing relays to connect efficiently to fuse blocks. Its three-hole configuration and 10.5mm terminal stud hole size ensure secure electrical connections, while the tin plating provides corrosion resistance for long-term operational reliability in demanding environments. This connector addresses the need for secure, high-current circuit links in space-constrained applications.
