89 Available / 1 Sold
Condition: New

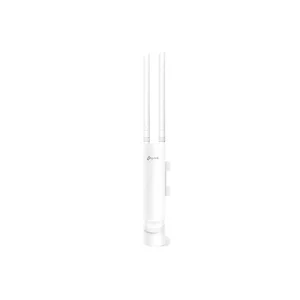

The TP-LINK EAP225-OUTDOOR OMADA AC1200 WIRELESS GIGABIT OUTDOOR ACCESS POINT BUSINE, part number EAP225-OUTDOOR, is a wireless access point designed for extending Wi-Fi coverage to outdoor environments. It features a durable, weatherproof enclosure suitable for various outdoor applications. This device provides dual-band Wi-Fi at up to 1200Mbps using 2x2 MIMO technology, offering a long-range coverage area due to its high transmission power and high-gain antennas. It is intended for businesses requiring reliable outdoor wireless connectivity, such as for guest Wi-Fi in hospitality, extending networks in campuses, or providing connectivity in outdoor venues. The access point supports 802.3af/Passive PoE for flexible deployment and includes a PoE adapter. Management is facilitated by the free Omada Controller software, allowing administrators to manage multiple EAPs. It also includes features like a captive portal for guest authentication and supports Facebook Wi-Fi and SMS authentication.
Hardware Features
Interface: Gigabit Ethernet (RJ-45)Port x 1(Support 802.3af PoE and Passive PoE)
Button: Reset
Power Supply: 802.3af PoE and 24 Passive PoE(PoE Adapter Included)
Power Consumption: 10.5W
Antenna: 2.4GHz: 2 x 3dBi, 5GHz: 2 x 4dBi
Mounting: Pole/Wall Mounting (Kits included)
Hardware Watch Dog: Yes Wireless Features
Wireless Standards: IEEE 802.11a/b/g/n/ac
Frequency: 2.4GHz, 5GHz
Signal Rate:
802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS equal 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS equal 1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions:
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security:
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power:
CE: less than 20dBm(2.4GHz,EIRP), less than 23dBm(5GHz,EIRP)
FCC: less than 30dBm(2.4GHz, EIRP), less than 30dBm(5GHz, EIRP) Management
Omada Controller Software: Yes
Email Alerts: Yes
Management MAC Access Control: Yes
System Logging Local/Remote Syslog: Yes
Web-based Management: Yes
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes Others
Certification: CE, FCC, RoHS
Package Contents:
AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor
Power Adapter
Mounting Kits
Installation Guide
Environment:
Operating Temperature: -30oC-70oC (-22oF-158oF)
Storage Temperature: -40oC-70oC (-40oF-158oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%90% non-condensing Item Dimension (L"xW"xH")
6 x 4 x 11
Weight
2 lbs
Warranty Information
Limited Lifetime Warranty
The package includes the AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point (EAP225-Outdoor), a Power Adapter, Mounting Kits for pole/wall installation, and an Installation Guide.
The EAP225-OUTDOOR supports both 802.3af PoE and 24V Passive PoE. A PoE adapter is included in the package for convenient power delivery.
Yes, this access point can be managed using the free Omada Controller software. This allows administrators to centrally manage hundreds of EAPs, supporting features like L3 Management and Multi-site Management.
The EAP225-OUTDOOR is designed to operate in temperatures ranging from -30oC to 70oC (-22oF to 158oF) and at an operating humidity of 10% to 90% non-condensing.
EAP225-OUTDOOR - Tplink TP-LINK EAP225-OUTDOOR OMADA AC1200 WIRELESS GIGABIT OUTDOOR ACCESS POINT BUSINE
