E785229 - Elo ET1723L-8UWA-1-BL-MT-ZB-G

New $826.71 New $826.71

Special Order
Ships in 1-2 weeks
Condition: New

$826.71  $1,116.06
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

ET1723L-8UWA-1-BL-MT-ZB-G

Expert Overview

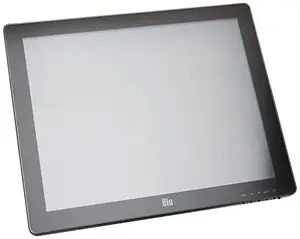

The ELO ET1723L-8UWA-1-BL-MT-ZB-G is a 17-inch desktop monitor designed for business and IT environments requiring a reliable display solution. Featuring a 5:4 aspect ratio and a native resolution of 1280x1024 at 75Hz, this monitor is suitable for applications where a square display format is preferred over widescreen. It offers both VGA and DVI-D input options, ensuring compatibility with various system configurations. The monitor includes two internal 2W speakers and two external USB ports, providing basic audio and peripheral connectivity without requiring additional hardware. With a typical brightness of 225 nits (IntelliTouch Zero Bezel) and an 800:1 contrast ratio, it delivers clear visuals for standard business operations. The E785229 model supports VESA mounting and offers tilt stand options, allowing for flexible deployment in diverse workspaces. This unit is built for continuous operation, indicated by a demonstrated MTBF of 50,000 hours, making it a practical choice for point-of-sale, information kiosks, or office workstations.

Technical Specifications

Model
1723L Display
17.0 Diagonal Aspect Ratio
5:4 Active Display Area
Horizontal: 13.0 (337mm)
Vertical: 11.0 (270mm) Native (Optimal) Resolution
1280x1024 at 75Hz Other Supported Resolutions
1280 x 1024 at 60, 75 Hz
1024 x 768 at 60, 75 Hz
800 x 600 at 60, 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60,75 Hz Colors
16.7 Million Brightness (Typical)
LCD Panel: 250 nits
IntelliTouch Zero Bezel: 225 nits
IntelliTouch Pro: 215 nits Response Time Total (Typical)
30 msec Viewing Angle (Typical)
Horizontal: 170 Degree Total
Vertical: 160 Degree Total Contrast Ratio (Typical)
800:1 On Screen Display (OSD)
Controls (Side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power Power
Input/Output: Analog, VGA, DVI-D
Input Video Signal Connector: Mini D-Sub 15-Pin VGA Type, DVI-D Connector
Input Frequency:
- Horizontal: 31 to 80 kHz
- Vertical: 56 to 75 Hz
Power Supply: AC-DC Power Adapter
Input Voltage:
- AC: 100 to 240V AC 50/60 Hz
-DC: 12.0V +/-5%
Input Connector: (DC) Coaxial Power Jack (2.1mm Outer pin Diameter, 6.4mm Barrel Diameter, 8.8mm Barrel Length)
Power Consumption (Typical):
- On (Monitor + AC/DC Adapter): 22W
- Sleep: (Monitor + AC/DC Adapter): 2.0W
- Off (Monitor + AC/DC Adapter): 1.0W Input/Output (I/O)
Speakers: Two 2W Internal Speakers
Additional Ports: Two External USB Ports Environmental
Temperature
- Operating: 0 C to 40 C (32 F to 104 F)
- Storage: -20 C to 60 C (-4 F to 140 F)
Humidity (Non-Condensing):
- Operating: 20 to 80%
Storage: 10 to 90% Other
Form Factor: Desktop
Enclosure Color: Black, white
MTBF: 50,000 hours demonstrated
Stand Options: Tilt, remove
Mounting Options: 75mm VESA mount
Sealing: Touchscreen sealed to bezel, Touchscreen sealed to LCD
Other Features:
- 2 stage DPMS
- VESA DDC Plug and Play
- Security lock receptacle
- Internal speakers Note
MTBF: An MTBF measurement is based on a statistical sample and is not intended to predict any one specific units reliability thus MTBF is not, and should not be construed as, a warranty measurement. Item Dimension (L"xW"xH")
20 x 18 x 9

Weight
20.00 lb

Warranty Information
3 Years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • ELO
  • E785229
  • B01MRVYI6N
  • 815335022258
  • New
  • 19 lbs
  • 19 X 9 X 17
  • Aug 22, 2026
  • Jul 22, 2020
  • China
Product Identifiers: Brand: Elo • Part #: E785229 • UPC: 815335022258 • ASIN: B01MRVYI6N • Category: Monitors
Browse more: Elo Monitors • All Elo products

Frequently Asked Questions

What video input connections does this monitor support?

The ELO ET1723L-8UWA-1-BL-MT-ZB-G monitor supports both Mini D-Sub 15-Pin VGA Type and DVI-D input connectors, allowing for compatibility with a range of video sources.

Does this monitor include built-in speakers or USB ports?

Yes, this monitor includes two 2W internal speakers for audio output and two external USB ports for connecting peripherals directly to the display.

What are the mounting options for this display?

The monitor can be used as a desktop unit with a tilt stand or mounted using its 75mm VESA mount option, providing flexibility for installation.

What is the native resolution and aspect ratio of the display?

The native (optimal) resolution of the 17-inch display is 1280x1024 at 75Hz, with a 5:4 aspect ratio.
