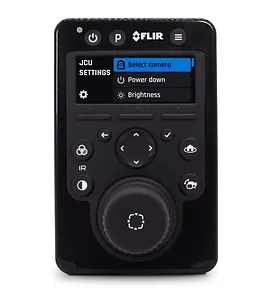

FLIR JCU-4 remote Joystick Controller with Accessories
Model: E70695The JCU-4 provides confident control of FLIR marine thermal and visible cameras. Pan, tilt, zoom, and control all the camera functions with JCU-4’s ergonomic keypad and responsive joystick control. Our premier FLIR joystick controller, the JCU-4 pairs seamlessly with FLIR marine thermal cameras and provides the operator a dedicated tactile camera control solution.
Designed by mariners, for mariners the JCU-4 is perfect for those who actively navigate using thermal technology and require dependable and intuitive control of their FLIR camera.
Specifications| Physical | |
| Width | 93.66 mm (3.69 in) |
| Height | 146.66 mm (5.77 in) |
| Depth | 63.36 mm (2.49 in) |
| Depth (including joystick) | 113.30 mm (4.46 in) |
| Power | |
| PoE class | Class 2 |
| Nominal supply voltage | PoE: 48 V dc Alternate power: 12 V / 24 V dc |
| Operating voltage range | PoE: 44 V to 57 V dc Alternate power: 8 V to 32 V dc |
| Power consumption | 5 W Max with full keypad illumination |
| Network | |
| Network connection ports | 1x 10/100/1000 Mbits/s RayNet (Ethernet) 1x 10/100/1000 Mbits/s PoE RayNet (Ethernet) |
| Display | |
| LCD Size | 2.9" |
| LCD Type | IPS TFT LCD |
| Active area | 26.51 mm x 67.68 mm |
| Brightness / Luminance | 600 nits / 600 cd/m2 |
| Viewing angles | 80 + / 80 + |
| Resolution | 376 (H) x 960 (W) pixels (RBG) |
| Contrast ratio | 1:1500 |
| Environmental | |
| Operating temperature | -25 C to +55 C (-13 F to 131 F) |
| Storage temperature | -30 C to +70 C (-22 F to 158 F) |
| Relative humidity | Maximum 93% @ + 40 °C (104 °F) |
| Waterproof rating | IPx6 |
The FLIR JCU4 Joystick Control Unit, part number E70695, is a remote 3-axis joystick controller designed for precision camera operation in various conditions. This unit is suitable for IT and business buyers seeking a dedicated tactile control solution for FLIR marine thermal and visible cameras. It integrates a 2.9-inch color LCD and a keypad to simplify camera operation and access setup menus. The dimmable color LCD and backlit keypad are intended to preserve operator vision during nighttime use. Three customizable keys allow for quick access to user-defined camera functions. The JCU4 can be paired with a FLIR marine camera and monitor for a complete viewing and control system, or added to an integrated chartplotter and camera setup as an alternative control method. It provides pan, tilt, zoom, and other camera function controls, addressing the need for dependable and intuitive camera management, particularly for users who actively navigate using thermal technology.
The FLIR JCU4 supports Power over Ethernet (PoE) with a nominal supply voltage of 48 V dc (operating range 44 V to 57 V dc). Alternatively, it can be powered by 12 V / 24 V dc, with an operating voltage range of 8 V to 32 V dc.
The box contains the JCU-4 unit with pre-fitted screws and mounting plates, a front cover, a weather cover, a documentation pack, a 3-meter right-angled RayNet (Ethernet) to RJ45 adapter cable, and a 3-meter right-angled 3-pin power cable.
The JCU4 is designed to provide confident control of FLIR marine thermal and visible cameras. It pairs seamlessly with FLIR marine thermal cameras.
The JCU4 features two network connection ports: one 10/100/1000 Mbits/s RayNet (Ethernet) port and one 10/100/1000 Mbits/s PoE RayNet (Ethernet) port.
E70695 - Flir Systems FLIR JCU4 Joystick Control Unit with 3m Cables
