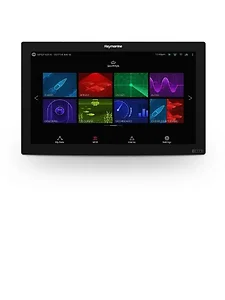

Raymarine AXIOM2 XL 24 - 24" Multifunction Display Only
Model: E70664The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.
Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.
Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.
Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.
Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.
Specifications| Weight | 11.3 kg (24.9 lbs) |
| Power consumption @ 12 V dc | 92.5 W |
| Power consumption @ 24 V dc | 77.96 W |
| Off current @ 12 V dc | PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) |
| Off current @ 24 V dc | PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) |
| PoE operating voltage range | 9.5 V dc to 32 V dc |
| Current | 10.03 A |
| Operating voltage range | 8 V dc to 32 V dc |
| Fuse rating | 15 A |
| Nominal supply voltage | 12 V dc / 24 V dc |
| Dimensions | Height: 386.84 mm (15.23 in), Width, 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in) |
The Raymarine Axiom2 XL 24 MFD (part number E70664) is a 24-inch multifunction display designed for maritime navigation. This unit is suitable for captains requiring a large-format chartplotter with integrated system capabilities for open cockpits or enclosed bridge stations. It features a 6-core processor and the LightHouse operating system, facilitating the integration of navigation, engine, and sensor data on a single screen. The HydroTough display technology provides water repellency and adjusts brightness automatically for various lighting conditions. This MFD supports integration with Quantum 2 or Cyclone radar for Doppler target tracking and radar/chart overlay, FLIR thermal imaging, and CHIRP sonar modules like the CP570 or RVM1600. It also offers smart sailing features such as layline overlays and preloaded polars. The Axiom2 XL 24 addresses the need for a robust, all-weather navigational display that can consolidate critical marine systems for enhanced situational awareness and operational efficiency.
The MFD operates on a nominal supply voltage of 12 V dc or 24 V dc, with an operating voltage range of 8 V dc to 32 V dc. Power consumption is 92.5 W at 12 V dc and 77.96 W at 24 V dc.
The display measures 386.84 mm (15.23 in) in height, 578.40 mm (22.77 in) in width, and 177.39 mm (6.98 in) in depth (including cables). It weighs 11.3 kg (24.9 lbs).
The Axiom2 XL 24 can integrate with Quantum 2 or Cyclone radar, FLIR thermal imaging, CHIRP sonar modules (CP570 or RVM1600), CAM300 cameras with an AR200 sensor for augmented reality, and various navigation, engine, and sensor data.
Yes, the Axiom2 XL 24 features a touchscreen for direct interaction. Additionally, it supports full remote control via the optional RMK-10 remote keypad.
E70664 - Raymarine Axiom2 XL 24 MFD
