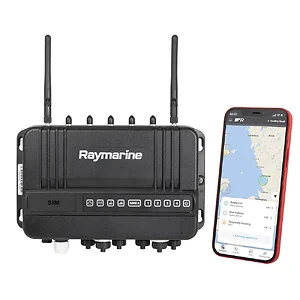

E70640 - Raymarine YachtSense Link Router

YachtSense Link Marine Mobile Router

The YachtSense Link is an advanced marine mobile router designed to provide seamless connectivity on your vessel. It features Raynet Ethernet ports, mobile broadband support, and onboard Wi-Fi, enabling crew and family to connect various devices to a unified network. The device intelligently switches between marina Wi-Fi and mobile networks, ensuring constant connectivity. Combine it with the Raymarine mobile app for remote access and enhanced security with GeoFence vessel monitoring.

Remote Monitoring

• GeoFence alerts notify you of vessel movement in or out of a designated safety zone.
• Low power consumption mode supports remote monitoring (subscription required).
• Four input and output low voltage digital switching channels.
• Simple DIY setup using a web browser or Axiom display.

Always Connected

• Connect Raymarine equipment, tablets, smart TVs, and other devices to a unified onboard network.
• Provides 4G (LTE) mobile broadband connectivity (SIM card and data plan required).
• Supports dual SIM cards for seamless international mobile network access.
• Integrated GPS with a 4-in-1 antenna (GPS/GNSS, 3G, 4G, and Wi-Fi).

Stay Informed

• View real-time instrument and navigation data on board or remotely.
• Four Raynet Ethernet ports for connecting Raymarine devices.
• SeaTalkNG/NMEA2000 compatibility.
• Durable IPX6 enclosure, designed for shock and vibration resistance.

POWER SPECIFICATION

• Nominal supply voltage: 12/24 V dc
• Operating voltage range: 8 V dc to 32 V dc

ENVIRONMENTAL SPECIFICATIONS

• Operating temperature range: -25�C to +55�C
• Storage temperature range: -30�C to +70�C
• Humidity: up to 93% @ 40�C
• Water ingress protection: IPx6

PHYSICAL SPECIFICATIONS

• Dimensions: 242.00 mm x 162.20 mm x 63.00 mm
• Weight: 1.03 Kg

WIRELESS NETWORKS SPECIFICATION

Boat Wi-Fi: Wi-Fi access point mode frequencies:

• 2.4 GHz: 2412 MHz to 2472 MHz

Dock WLAN: Wi-Fi station mode frequencies:

• 2.4 GHz: 2412 MHz to 2472 MHz
• 5 GHz: 5150 MHz to 5725 MHz

Cellular/Diversity: 2G/3G/4G frequencies:

• LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
• LTE-TDD: B38/B39/B40/B41
• WCDMA: B1/B2/B4/B5/B6/B8/B19
• GSM: B2/B3/B5/B8

The Raymarine YachtSense Link Router, part number E70640, is a marine mobile router designed to establish and maintain network connectivity on vessels. This device integrates Raynet Ethernet ports, mobile broadband, and onboard Wi-Fi to create a unified network for various devices, including Raymarine equipment, tablets, and smart TVs. It supports dual SIM cards for international mobile network access and features automated switching between marina Wi-Fi and cellular networks to ensure continuous connectivity. The router also includes an integrated GPS with a 4-in-1 antenna and offers remote monitoring capabilities, such as GeoFence alerts and real-time data viewing, when combined with the Raymarine mobile app. Its IPX6 enclosure provides resistance to shock, vibration, and water ingress, making it suitable for marine environments. The YachtSense Link Router addresses the need for reliable onboard networking and remote vessel oversight for marine operators.
