4 Available
Condition: New

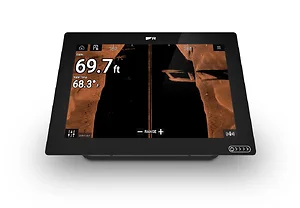

Raymarine Axiom+ 12 12" Muilti-Function Display with RealVison Sonar, with RV100 Transducer with Lighthouse North America Charts
Model: E70639-03-102The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.
New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
Specifications| General | |
| Display Size | 12.1 inch High Density IPS |
| Display Resolution | 1280 x 720 (WXGA) |
| Display Type | Multitouch with HydroTough™ rugged hydrophobic coating |
| Brightness | 1,800 nits |
| Viewing Angle | 88° Top, Bottom, Left, Right |
| Dimensions W x H x D (Excluding trunnion and cables) | 12.36 x 8.54 x 3.0in |
| Mounting Options | Surface, Flush, Trunnion, (Front installation bracket available) |
| Waterproof Rating | IPX6 / IPX7 |
| Operating Temperature Range | -25°C to +55°C (-13°F to +131°F) |
| Storage Temperature Range | -30°C to +70°C (-22°F to +158°F) |
| Power | |
| Voltage | 12V DC (8V to 16V DC) |
| Power Consumption (Full brightness) | 19.96 Watts |
| Sensors | |
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required |
| Sonar Type (Built-in) | RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D |
| Sonar Connections | 25pin RealVision™ type connector |
| Sonar Depth | High CHIRP Sonar = 900 feet (274m) DownVision™ = 600 feet (183m) SideVision™ = 300 feet (91m) RealVision™ 3D = 300 feet (91m) |
| External Sonar Option | Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet |
| Radar | Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars |
| AIS | Yes - NMEA2000 compatible |
| Autopilot Control | Yes - Evolution Autopilot |
| Thermal Night Vision | Yes FLIR AX8, M232, M300 Series, M400, M500 |
| Video / Camera | Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) |
| Weather | GRIB View - Free GRIB viewer and Theyr Ltd Subscription SiriusXM - N. America Only |
| Audio | NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio |
| Digital Switching | Yes - Empirbus & C-Zone compatible |
| Remote Control | Yes Optional RMK-10 (A80438) |
| Networking | |
| Ethernet | 1 x 10/100 Mbit/s Network (RayNet) |
| NMEA0183 | No |
| NMEA2000 | NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter |
| SeaTalkNG | Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) |
| USB | 1 x USB microAB |
| Wi-Fi | WiFi - 802.11 a/b/g/n |
| BlueTooth | Bluetooth v4.0 |
| Navigation | |
| Cartography | Lighthouse Charts, Navionics, and C-MAP compatible |
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) | 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
| Memory | |
| Internal Memory | 16 GB Solid State |
| External Memory | 1x MicroSD Card Slot |
| Languages | 24 |
| Conformances | NMEA 2000 certification Europe: 1999/5/EC Australia and New Zealand: C-Tick, Compliance Level 2 FCC 47CFR part 15 Industry Canada RSS210 |
The Raymarine Axiom+ 12RV is a 12.1-inch Multi-Function Display (MFD) designed for marine navigation and sonar applications. This unit, part number E70639-03-102, is suitable for commercial and recreational marine operators requiring advanced charting, sonar, and networking capabilities. It integrates a powerful quad-core processor and increased storage, facilitating fluid chart redraws across LightHouse, Navionics, and C-MAP electronic charts. The included RV100 transom transducer provides RealVision Sonar, encompassing High CHIRP, DownVision, SideVision, and RealVision 3D, with depth capabilities up to 900 feet for High CHIRP. Its 1280 x 720 WXGA IPS display offers 1,800 nits brightness and wide viewing angles, enhanced by a nano-coated, impact-resistant glass screen. The MFD operates on the LightHouse 3 OS and features a 10 Hz GPS/GNSS receiver for accurate positioning. It supports networking with additional Axiom displays, radar, and external sonar modules, making it a central component for integrated marine electronics systems.
The Raymarine Axiom+ 12RV includes built-in RealVision Sonar, which provides High CHIRP, DownVision, SideVision, and RealVision 3D. It comes with an RV100 Transom Transducer.
The display features a 12.1-inch High Density IPS screen with a resolution of 1280 x 720 (WXGA). It offers a brightness of 1,800 nits, ensuring visibility in various lighting conditions.
Yes, the Axiom+ 12RV is designed for networking. It can connect with multiple Axiom displays, Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars, various external sonar modules (CP100, CP200, CP370, CP470, CP570, RVX1000), Evolution Autopilots, and up to 10 IP network cameras.
This unit comes with Lighthouse North America Charts. It also supports fluid and fast chart redraws of LightHouse, Navionics, and C-MAP electronic charts.
E70639-03-102 - Raymarine Axiom+ 12RV 12in MFD RV100 Transom Transducer Lighthouse North America Chart
