E70346 - Raymarine CAM210 Day & Night IP Marine Bullet Camera

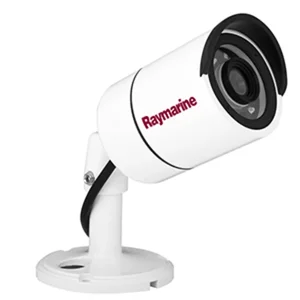

CAM210 Day & Night IP Marine Bullet Camera

Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.

• Plug and play integration with Raymarine MFD's running Lighthouse II
• Power over Ethernet (PoE) or direct 12V DC power supply

• High bright IR LEDs for operation in total darkness
• Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)

• Intelligent IR technology for clear video images at night in all conditions

Specifications:

• CPU: 32-bit ARM9 RISC CPU up to 432MHz
• Flash / SDRAM: 128MB / 128MB

• Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor)
• Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel

• Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel
• S/N Ratio: More than 50dB

• Minimum Illumination: 0Lux (IR On)
• IR Distance: 20M

• Day & Night: ICR
• Lens: 6.0mm Megapixel Board Lens

• Field of View:
  Diagonal = 63.6° +/- 3°
  Horizontal = 53.3° +/- 3°
  Vertical = 33.1° +/- 3°
• Video Compression: H.264 High Profile@4.0, MJPEG Image quality: 3 Steps

• Resolution: Up to 1920 x 1080 (Full HD)
• Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution

• Video Streaming:
  Support multi stream with H.264, MJPEG
  Adjustable frame rate
  CVBR/CBR in H.264
• Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom
• Image Setting:
  Day & Night
  Auto White Balance
  Auto Exposure
  Privacy Mask
  Effects - Color, Sharpness, Mirror / V-Flip
• Security: Password protection, User access log, HTTPS encryption
• Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
• Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks

• Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af
• Power Consumption: Max. 3.3W, Max. 5.3W with IR

• Net Weight: 900g
• LED's: Power, Network Connection

• Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
• General Operation Temperature: 0°40° Celsius(32F104F)

• Storage Temperature: -10°50° Celsius(14F122F)

The Raymarine CAM210 Day & Night IP Marine Bullet Camera (part number E70346) is a ruggedized network video camera designed for above-deck marine applications. It provides high-definition video capture in both day and night conditions, utilizing high-bright IR LEDs for operation in total darkness and Intelligent IR technology for clear night images. Digital Defog processing is integrated to enhance image clarity in adverse weather such as fog or smoke.

This camera is suitable for IT and marine professionals requiring reliable surveillance or monitoring on vessels. It offers plug-and-play integration with Raymarine MFDs running Lighthouse II, simplifying setup within existing Raymarine systems. Power options include Power over Ethernet (PoE) or a direct 12V DC power supply, offering installation flexibility. The integrated sun-cover and compact frame are designed for optimal visibility and straightforward mounting.
