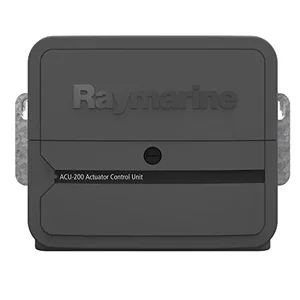

E70099 - Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives

• Includes the M81105 Rotary Rudder Reference


• Sleep switch

• Power

• Drive motor

• Drive clutch

• Ground

• Operating Temperature: -20°C to +55°C (-4°F to +131°F)

• Storage Temperature: -30°C to +70°C (-22°F to +158°F)

• Relative Humidity: MAX 93%

• Europe: 2004/108/EC

• Australia and New Zealand: C-Tick, Compliance Level 2

The Raymarine ACU-200 Actuator Control Unit, part number E70099, is designed to provide autopilot drive power and supply power to the SeaTalkng bus. This unit is suitable for marine applications requiring control of Type 1 hydraulic, linear, and rotary mechanical drives. It delivers a maximum continuous drive current output of 15 Amps at the supply voltage and a drive clutch output of up to 2.0 A continuous, selectable between 12V and 24V. The ACU-200 operates on a nominal supply voltage of 12V or 24V within an operating range of 10.8V to 31.2V dc. It includes connections for a sleep switch, power drive motor, drive clutch, and ground, and comes with the M81105 Rotary Rudder Reference. This unit is intended for IT professionals and system integrators configuring marine navigation systems where reliable autopilot control and network power distribution are critical.
