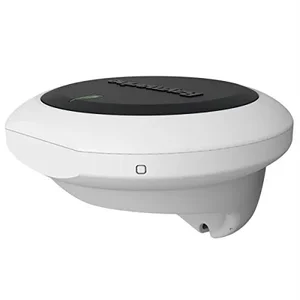

E70096 - Raymarine EV-1 Sensor Core

• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change

• Flexible installation options. Mount above or below deck

• Simple SeaTalk^ng connectivity to the control head and ACU

• Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions

• Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes

• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

The Raymarine EV-1 Sensor Core, part number E70096, is a 9-axis solid-state sensor designed for integration into Raymarine Evolution autopilot systems. This component monitors vessel motion across three dimensions, including heading, pitch, roll, and yaw, to provide real-time data for autopilot adjustments. It combines advanced sensors with an autopilot processor within a single, sealed housing, rated to IPX6 and IPX7 for waterproofing. This allows for flexible installation either above or below decks. The EV-1 is specifically engineered for use with Evolution mechanical and hydraulic autopilot systems. It utilizes SeaTalkng networking for a single-cable connection, supplying both power and data to the Evolution ACU (actuator control unit) and supporting extended SeaTalkng and NMEA2000 networks. This sensor core is suitable for IT professionals managing marine electronics systems that require precise and reliable heading data for navigation, radar overlay, and MARPA functions on Raymarine multifunction displays.
