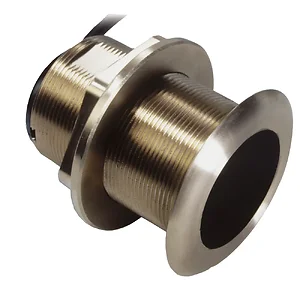

The Raymarine B60-12, 12 Degree Tilted Element Transducer, part number E66086, is a bronze mid-performance transducer probe designed for marine depth and temperature sensing. This unit is engineered for vessels with a deadrise angle between 8 and 15 degrees, utilizing a 12-degree tilted ceramic element to provide a vertical beam without the need for an external fairing block. This design ensures accurate depth readings by compensating for hull deadrise and minimizes drag with a nearly flush housing that extends only 5 mm from the hull. It operates at dual frequencies of 50/200 kHz with a 600w RMS power output. The B60-12 is compatible with Raymarine DSM250, DSM30, DSM300, DSM300G, and CP300 sonar modules, making it suitable for integrating into existing Raymarine marine electronics systems where precise depth and temperature data are required for navigation or fishing applications.
This transducer is compatible with Raymarine DSM250, DSM30, DSM300, DSM300G, and CP300 sonar modules.
The 12-degree tilted element is designed to provide built-in deadrise compensation for hulls with an 8-15 degree deadrise, ensuring a vertical beam for accurate depth readings without a fairing.
The transducer operates at dual frequencies of 50/200 kHz and has a 600w RMS power output.
The transducer housing is made from bronze.
E66086 - Raymarine B60-12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300
