Technical Specifications
E6420 CI5/2.5 14.0 4GB 320GB CAM W7P 64
Enjoy business-rugged performance with the redesigned Dell Latitude E6420. This laptop is built for the mobile business class with the durability, security and convenient manageability you’ve come to expect from the Latitude E-Family laptops.
*
MAIN SPECIFICATIONS

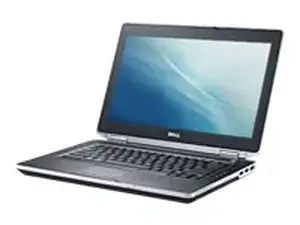

Product Description Dell Latitude E6420 - Core i5 2520M 2.5 GHz - 14" TFT
Dimensions (WxDxH) 13.9 in x 9.5 in x 1.3 in
Weight 4.6 lbs
Localization English / United States
Platform Technology Intel vPro Technology
System Type Notebook
Built-in Devices Stereo speakers, wireless LAN antenna, Bluetooth antenna
Processor Intel Core i5 2520M / 2.5 GHz ( Dual-Core )
Cache Memory 3 MB
RAM 4 GB (installed) / 8 GB (max) - DDR3 SDRAM - 1333 MHz
Card Reader Yes
Hard Drive 320 GB - Serial ATA-300 - 7200 rpm
Optical Storage DVD±RW
Display 14" LED backlight TFT 1366 x 768 ( WXGA ) - 16:9
Graphics Controller NVIDIA NVS 4200M / Intel HD Graphics 3000
Video Memory 512 MB DDR3 SDRAM
Audio Output Sound card
Networking Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE♊.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 3.0
Wireless NIC Intel Centrino Advanced-N 6205
Notebook Camera Integrated
Input Device Touchpad, backlit keyboard
Battery 6-cell lithium ion
Operating System Microsoft Windows 7 Professional 64-bit Edition
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty 3 years warranty
General
Platform Technology Intel vPro Technology
System Type Notebook
Built-in Devices Stereo speakers, wireless LAN antenna, Bluetooth antenna
Width 13.9 in
Depth 9.5 in
Height 1.3 in
Weight 4.6 lbs
Localization English / United States
Processor
Processor Intel Core i5 2520M / 2.5 GHz
Multi-Core Technology Dual-Core
64-bit Computing Yes
Features Intel Turbo Boost Technology 2.0, Intel vPro Technology
Chipset Type Mobile Intel QM67 Express
Cache Memory
Installed Size 3 MB
RAM
Installed Size 4 GB / 8 GB (max)
Technology DDR3 SDRAM - 1333 MHz
Form Factor SO DIMM 204-pin
Storage Controller
Type Serial ATA
Storage
Hard Drive 320 GB - Serial ATA-300 - 7200 rpm
Optical Storage
Type DVD±RW
Card Reader
Type Card reader
Display
Display Type 14" TFT
LCD Backlight Technology LED backlight
Max Resolution 1366 x 768 ( WXGA )
Widescreen Display Yes
Image Aspect Ratio 16:9
Features Anti-glare
Video
Graphics Processor / Vendor NVIDIA NVS 4200M / Intel HD Graphics 3000
Video Memory 512 MB DDR3 SDRAM
Video System Features NVIDIA Optimus
Audio
Audio Output Sound card
Audio Input Stereo microphone
Notebook Camera
Camera Type Integrated
Input Device(s)
Type Touchpad, backlit keyboard
Keyboard - Localization and Layout English
Networking
Networking Network adapter
Wireless LAN Supported Yes
Wireless NIC Intel Centrino Advanced-N 6205
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE♊.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 3.0
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth].0
Expansion / Connectivity
Expansion Slot(s)\ memory - SO DIMM 204-pin 1 (total) / 1 (free) x ExpressCard/54 1 PCI Express Mini Card 2 PCI Express Half Mini Card
Interfaces[ x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 3 x Hi-Speed USB - 4 pin USB Type A 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x audio / video - HDMI 1 x docking / port replicator 1 x eSATA / Hi-Speed USB - 11 pin USB/eSATA 1 x audio - headphones/microphone - mini-phone 3.5 mm
Power
Power Device External
Power Provided 90 Watt
Battery
Technology 6-cell lithium ion
Installed Qty 1
Capacity 60 Wh
Operating System / Software
OS Provided Microsoft Windows 7 Professional 64-bit Edition
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Software Drivers & Utilities, Cyberlink PowerDVD , Windows 7 Professionalτ-bit recovery DVD, Roxio Creator
Environmental Standards
ENERGY STAR Qualified Yes
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - parts and labor - 3 years
