Is the E630FDQS8 in stock?

The E630FDQS8 is currently out of stock. Please check back or request a quote for availability.

Add price you are willing to pay for the product: (E630FDQS8)

SKU: QESDHN54Q2 | Mfg. Part: E630FDQS8 | UPC: 704118108657 |

1 Reviews | Share Make an offer

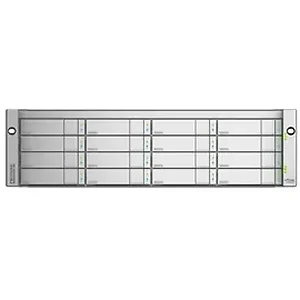

Promise Technology E630FDQS8 Promise E630FDQS8 3U 16-Bay Dual Controller RAID System

Name: E630FDQS8 Promise Technology Promise E630FDQS8 3U 16-Bay Dual Controller RAID System
Brand: Promise Technology
SKU: QESDHN54Q2
Price: 59856.36 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Out of Stock
Condition: New

$59,856.36 ~~$80,806.09~~

Free Shipping for this Item

Product Overview

The Promise E630FDQS8 is a robust 3U 16-bay RAID storage solution, designed for high availability and optimal performance. With dual controllers and extensive RAID levels, it is perfect for enterprise environments requiring reliable data protection and fast access speeds. Its external I/O support, impressive cache, and compatibility with various operating systems make it a versatile choice for your storage needs.

Technical Specifications

Form Factor: 3U 16-Bay
Controller: Dual Controller
Drive Support: Up to 16 3.5/2.5 HDDs or SSDs
Supported Formats: NL-SAS 7200 RPM at 6 Gbps; SATA options available
External I/O Ports (Per Controller): Four 8Gbps Fibre Channel ports, one external SAS port (Mini SAS)
Data Cache: 4GB per controller with hot-swappable battery backup
RAID Levels: 0, 1, 1E, 5, 6, 10, 50, 60
RAID Stripe Size Support: 64K, 128K, 256K, 512K, and 1MB
Hot Spares: Global or Dedicated with Revertible Option
Max LUNs per Subsystem: 1024
Max LUNs per Array: 32
Supported Operating Systems: Mac OS X, Microsoft Windows Server, RedHat Enterprise Linux, SuSE Linux, VMware ESX
Voltage: 100 to 240V AC Auto Ranging
Current (Maximum): 10A at 100V AC, 5A at 200V AC
Power Efficiency: >80% at 110V (>20% Load)
Temperature Range: Operational: 5 to 35 C, Non-Operational: -40 to 60 C
Humidity: Operational: 10% to 90% (Non-Condensing)
Acoustic Noise Levels: 55dB (Typical), 65dB (Maximum)
Shock: Operational: 5G; Non-Operational: 10G
Vibration: Operational: 0.3G, Non-Operational: 1G
Safety Standards: CE, FCC Class A, UL/cUL, TUV, and more
Environmental Standards: RoHS, GreenPC, WEEE
