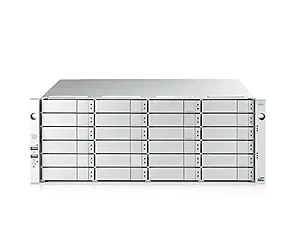

Promise Technology E5800FSNX Promise E5800FSNX 4U 24-Bay 16G FC RAID Subsystem

Out of Stock
Condition: New

$6,341.88  $8,561.54

Product Overview

The Promise E5800FSNX is a robust 4U, 24-bay RAID subsystem designed for high performance and reliability. With a single controller, it supports 16G FC connectivity and provides advanced storage features to help manage and protect critical data effectively. Ideal for enterprise applications, it offers extensive power management and user-friendly management interfaces.

Technical Specifications

  • Form Factor: 4U/24 Bay
  • Hot spares: Global or dedicated with revertible option
  • Max LUNs per subsystem: 1024
  • Max LUNs per array: 32
  • Advanced Storage Features:
    • Advanced Cache Mirroring over PCIe Gen3
    • Simple, drag-and-drop LUN Masking and Mapping
    • Asymmetric LUN Unit Access (ALUA)
    • Volume Copy
    • PerfectFlash - Non-Disruptive Software Update
    • I/O performance power monitoring tools
    • USB Service Log
    • LDAP Support for central user management
  • Background Activities:
    • Media Patrol
    • Background Synchronization
    • Foreground Initialization
    • Rebuild
    • Redundancy Check
    • Disk SMART Polling
    • Online Capacity Expansion (OCE)
    • RAID Level Migration (RLM)
    • UPS Monitoring
    • Feature rich task scheduler for background activities
  • PerfectRAID Features:
    • Predictive Data Migration (PDM)
    • Intelligent Bad Sector Remapping
    • SMART Error Handling
    • NVRAM Error Logging
    • Disk Slot Power Control
    • Read/Write Check Table
    • Write Hole Table
  • GreenRAID Features:
    • Four levels of advanced power management disk drive (MAID) support
    • Efficient 80Plus Certified power supplies
  • Management Interfaces:
    • Web Based management using WebPAM PROe (Ethernet)
    • Command Line Interface (CLI) or Utility (Serial Port or Ethernet via Telnet, SSH)
    • Third Party Management Support via SNMP, CIM
  • Supported Operating Systems: Windows Server 2008, 2012, HyperV, OS X 10.x, RHEL 6.5, 6.6, SLES 11, VMware ESX v6.x
  • Power Specifications:
    • Voltage: 100--240 Vac Auto--Ranging
    • Current (Maximum): 9A at 100 Vac, 4A at 240 Vac
    • Power Conversion Efficiency: >80% at 110V (>20% load), >80% at 240V (>20% load)
  • Temperature Range:
    • Operational: 5°C to 40°C
    • Non-Operational: -40°C to 60°C
  • Humidity:
    • Operational: 10% to 90% (Non-Condensing)
    • Non-Operational: 5% to 95% (Non-Condensing)
  • Acoustic Noise Levels:
    • 55 dB (Typical)
    • 65 dB (Maximum)
  • Shock:
    • Operational: 5G, 11 ms duration
    • Non-Operational: 10G, 11 ms duration
  • Vibration:
    • Operational: 0.3G, 5 to 500 Hz
    • Non-Operational: 1G, 5 to 500 Hz
  • Safety and Emission Certification:
    • EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC
    • Safety: IEEE CB, UL/cUL and TUV

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Promise Technology
  • E5800FSNX
  • 704118112524
  • New
  • 65.26 lbs
  • 30 X 13 X 23
  • Mar 07, 2026
  • Sep 18, 2016
Product Identifiers: Brand: Promise Technology • Part #: E5800FSNX • UPC: 704118112524 • Category: Disk Controllers/RAID Cards
