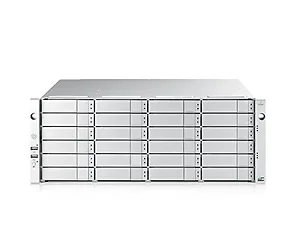

Promise Technology E5800FDQS8 Promise E5800F Dual Controller 4U 24 Bay RAID System

Out of Stock
Condition: New

$21,240.33  $28,674.45

Product Overview

The Promise E5800F is a high-performance storage solution designed for enterprise environments, offering a robust dual controller architecture for enhanced redundancy and performance. It supports up to 24 SAS HDDs, providing significant storage capacity and advanced RAID capabilities.

With features like advanced cache mirroring, predictive data migration, and efficient power management, this system is ideal for demanding storage applications in virtualized environments.

Technical Specifications

  • Form Factor: 4U / 24 Bay
  • Storage Capacity: Total raw capacity up to 192TB with 24 x 8TB 7200 rpm 12G SAS HDDs
  • Hot Spares: Global or dedicated with revertible option
  • Max LUNs per subsystem: 1024
  • Max LUNs per array: 32
  • Advanced Storage Features:
    • Advanced Cache Mirroring over PCIe Gen3
    • Drag-and-drop LUN Masking and Mapping
    • Asymmetric LUN Unit Access (ALUA)
    • Volume Copy
    • PerfectFlash - Non-Disruptive Software Update
    • I/O performance power monitoring tools
    • USB Service Log
    • LDAP Support for central user management
  • Background Activities:
    • Media Patrol
    • Background Synchronization
    • Foreground Initialization
    • Rebuild
    • Redundancy Check
    • Disk SMART Polling
    • Online Capacity Expansion (OCE)
    • RAID Level Migration (RLM)
    • UPS Monitoring
    • Rich task scheduler for background activities
  • PerfectRAID Features:
    • Predictive Data Migration (PDM)
    • Intelligent Bad Sector Remapping
    • SMART Error Handling
    • NVRAM Error Logging
    • Disk Slot Power Control
    • Read/Write Check Table
    • Write Hole Table
  • GreenRAID Features:
    • Four levels of advanced power management (MAID) support
    • Efficient 80Plus Certified power supplies
  • Management Interfaces:
    • Web Based management using WebPAM PROe (Ethernet)
    • Command Line Interface (CLI) or Command Line Utility (Serial Port or Ethernet via Telnet, SSH)
    • Third Party Management Support via SNMP, CIM
  • Supported Operating Systems: Windows Server 2008, 2012, HyperV, OS X 10.x, RHEL 6.5, 6.6, SLES 11, VMWare ESX v6.x
  • Voltage: 100-240 Vac Auto-Ranging
  • Current (Maximum): 9A at 100 Vac, 4A at 240 Vac
  • Power Conversion Efficiency: >80% at 110V (>20% load), >80% at 240V (>20% load)
  • Temperature Range: Operational: 5°C to 40°C, Non-Operational: -40°C to 60°C
  • Humidity: Operational: 10% to 90% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing)
  • Acoustic Noise Levels: 55 dB (Typical), 65 dB (Maximum)
  • Shock: Operational: 5G, 11 ms duration, Non-Operational: 10G, 11ms duration
  • Vibration: Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz
  • Safety and Emission Certification: EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC; Safety: IEEE CB, UL/cUL and TUV

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Promise Technology
  • E5800FDQS8
  • 704118111190
  • New
  • 108 lbs
  • 31 X 13 X 23
  • Mar 07, 2026
  • Sep 18, 2016
Product Identifiers: Brand: Promise Technology • Part #: E5800FDQS8 • UPC: 704118111190 • Category: Disk Controllers/RAID Cards

Promise Technology E5800FDQS8 Promise E5800F Dual Controller 4U 24 Bay RAID System
