SKU: WF0NB94BDX |  Mfg. Part: E5800FDQS6  | UPC: 704118111145  |
 1 Reviews
 |     Share Make an offer

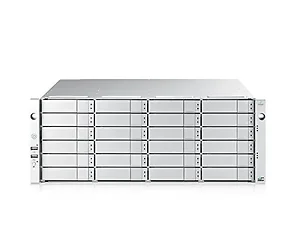

Promise Technology E5800FDQS6 Promise E5800FDQS6 4U 24-Bay FC RAID Storage System

Out of Stock
Condition: New

$17,233.27  $23,264.91
Free Shipping for this Item

Product Overview

The Promise E5800FDQS6 is a high-performance 4U 24-bay FC RAID storage system, designed for enterprise applications requiring exceptional reliability and scalability. With dual controllers and robust advanced storage features, it delivers impressive data handling capabilities, making it ideal for critical workloads.

Technical Specifications

  • Form Factor: 4U / 24 Bay
  • Hot Spares: Global or dedicated with revertible option
  • Max LUNs per subsystem: 1024
  • Max LUNs per array: 32
  • Advanced Storage Features:
    • Advanced Cache Mirroring over PCIe Gen3
    • Simple, drag-and-drop LUN Masking and Mapping
    • Asymmetric LUN Unit Access (ALUA)
    • Volume Copy
    • PerfectFlash - Non-Disruptive Software Update
    • I/O performance power monitoring tools
    • USB Service Log
    • LDAP Support for central user management
  • Background Activities:
    • Media Patrol
    • Background Synchronization
    • Foreground Initialization
    • Rebuild
    • Redundancy Check
    • Disk SMART Polling
    • Online Capacity Expansion (OCE)
    • RAID Level Migration (RLM)
    • UPS Monitoring
    • Feature rich task scheduler for background activities
  • PerfectRAID Features:
    • Predictive Data Migration (PDM)
    • Intelligent Bad Sector Remapping
    • SMART Error Handling
    • NVRAM Error Logging
    • Disk Slot Power Control
    • Read/Write Check Table
    • Write Hole Table
  • GreenRAID Features:
    • Four levels of advanced power management disk drive (MAID) support
    • Efficient 80Plus Certified power supplies
  • Management Interfaces:
    • Web Based management using WebPAM PROe (Ethernet)
    • Command Line Interface (CLI) or Command Line Utility (Serial Port or Ethernet via Telnet, SSH)
    • Third Party Management Support via SNMP, CIM
  • Supported Operating Systems: Windows Server 2008, 2012, HyperV, OS X 10.x, RHEL 6.5, 6.6, SLES 11, VMWare ESX v6.x
  • Voltage: 100–240 Vac Auto–Ranging
  • Current (Maximum): 9A at 100 Vac, 4A at 240 Vac
  • Power Conversion Efficiency: >80% at 110V (>20% load), >80% at 240V (>20% load)
  • Temperature Range: Operational: 5°C to 40°C, Non-Operational: -40°C to 60°C
  • Humidity: Operational: 10% to 90% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing)
  • Acoustic Noise Levels: 55 dB (Typical), 65 dB (Maximum)
  • Shock: Operational: 5G, 11 ms duration, Non-Operational: 10G, 11ms duration
  • Vibration: Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz
  • Safety and Emission Certification: EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC, Safety: IEEE CB, UL/cUL and TUV

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Promise Technology
  • E5800FDQS6
  • 704118111145
  • New
  • 109.35 lbs
  • 18 X 7 X 20
  • Mar 07, 2026
  • Sep 18, 2016
Product Identifiers: Brand: Promise Technology • Part #: E5800FDQS6 • UPC: 704118111145

Promise Technology E5800FDQS6 Promise E5800FDQS6 4U 24-Bay FC RAID Storage System
