Technical Specifications

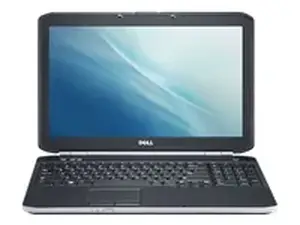

E5520 CI5/2.5 15.6 2GB 320GB DVDR CAM BT W7P 32B
Take your office wherever you go with the redesigned Dell Latitude E5520. This laptop is built for the mobile business class with the durability, productivity, security and easy manageability you've come to expect from the Latitude E-Family laptops.
*
MAIN SPECIFICATIONS
Product Description Dell Latitude E5520 - Core i5 2520M 2.5 GHz - 15.6" TFT
Dimensions (WxDxH) 15.3 in x 9.9 in x 1.3 in
Weight 5.1 lbs
Localization English / United States
System Type Notebook
Built-in Devices Stereo speakers, wireless LAN antenna, Bluetooth antenna
Processor Intel Core i5 2520M / 2.5 GHz ( Dual-Core )
Cache Memory 3 MB - L3 cache
RAM 2 GB (installed) / 8 GB (max) - DDR3 SDRAM - 1333 MHz - PC3-10600 ([ x 2 GB )
Card Reader Yes
Hard Drive 320 GB - Serial ATA-300 - 7200 rpm
Optical Storage DVD±RW
Display 15.6" LED backlight TFT 1366 x 768 ( WXGA )
Graphics Controller Intel HD Graphics 3000 Dynamic Video Memory Technology
Audio Output Sound card
Networking Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE♊.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 3.0
Wireless NIC Dell Wireless 1501
Notebook Camera Integrated
Input Device Keyboard, touchpad
Battery 6-cell lithium ion
Operating System Microsoft Windows 7 Professional
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty 1 year warranty
General
System Type Notebook
Built-in Devices Stereo speakers, wireless LAN antenna, Bluetooth antenna
Width 15.3 in
Depth 9.9 in
Height 1.3 in
Weight 5.1 lbs
Localization English / United States
Processor
Processor Intel Core i5 2520M / 2.5 GHz
Multi-Core Technology Dual-Core
64-bit Computing Yes
Features Intel Turbo Boost Technology 2.0
Chipset Type Mobile Intel HM65 Express
Cache Memory
Type L3 cache
Installed Size 3 MB
RAM
Installed Size 2 GB / 8 GB (max)
Technology DDR3 SDRAM - 1333 MHz
Memory Specification Compliance PC3-10600
Form Factor SO DIMM 204-pin
Configuration Features 1 x 2 GB
Storage Controller
Type Serial ATA
Serial ATA Interface Serial ATA-300
Storage
Hard Drive 320 GB - Serial ATA-300 - 7200 rpm
Optical Storage
Type DVD±RW
Read Speed 8x
Card Reader
Type Card reader
Display
Display Type 15.6" TFT
LCD Backlight Technology LED backlight
Max Resolution 1366 x 768 ( WXGA )
Widescreen Display Yes
Features Anti-glare
Video
Graphics Processor / Vendor Intel HD Graphics 3000 Dynamic Video Memory Technology
Audio
Audio Output Sound card
Audio Input Microphone
Notebook Camera
Camera Type Integrated
Input Device(s)
Type Keyboard, touchpad
Networking
Networking Network adapter
Wireless LAN Supported Yes
Wireless NIC Dell Wireless 1501
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE♊.11g, IEEE 802.11n, Bluetooth 3.0
Compliant Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 3.0
Expansion / Connectivity
Expansion Slot(s)\ (total) / 1 (free) x memory - SO DIMM 204-pin 1 (total) / 1 (free) x ExpressCard/54
Interfaces] x Hi-Speed USB - 4 pin USB Type A 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x eSATA / Hi-Speed USB - 11 pin USB/eSATA 1 x display / video - HDMI - 19 pin HDMI Type A 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm 1 x IEEE 1394 (FireWire) - 4 pin FireWire 1 x docking / port replicator
Miscellaneous
Features Security lock slot (cable lock sold separately)
Power
Power Device External
Power Provided 65 Watt
Battery
Technology 6-cell lithium ion
Installed Qty 1 / 1 (max)
Capacity 60 Wh
Operating System / Software
OS Provided Microsoft Windows 7 Professional
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Software Cyberlink PowerDVD , Dell Webcam Central, Roxio Creator
Environmental Standards
ENERGY STAR Qualified Yes
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - parts and labor - 1 year
