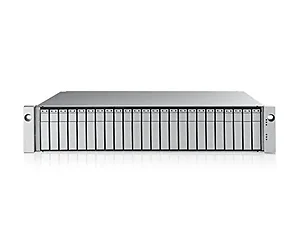

E5320FSNX2 - Promise Technology Promise E5320FS 2U 24-Bay 16G FC RAID Storage System

Special Order
Ships in 1-2 weeks
Condition: New

$22,610.74  $30,524.50
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

The Promise E5320FS is a high-performance 2U 24-bay RAID storage subsystem designed for demanding applications requiring robust data management and reliability. It features a 16G Fibre Channel interface paired with 24 slots for 2TB 7200 RPM 12G SAS HDDs, allowing for scalable storage solutions to meet your enterprise needs.

Technical Specifications

  • Form Factor: 2U / 24 Bay
  • Descriptions: 2U / 24-Bay SFF 16G FC Single Controller RAID Subsystem with 24 x 2TB 7200 RPM 12G SAS HDD, total capacity of 48TB
  • Hot Spares: Global or dedicated with revertible option
  • Max LUNs per Subsystem: 1024
  • Max LUNs per Array: 32
  • Advanced Storage Features:
    • Advanced Cache Mirroring over PCIe Gen3
    • Simple, drag-and-drop LUN Masking and Mapping
    • Asymmetric LUN Unit Access (ALUA)
    • Volume Copy
    • PerfectFlash - Non-Disruptive Software Update
    • I/O performance power monitoring tools
    • USB Service Log
    • LDAP Support for central user management
  • Background Activities:
    • Media Patrol
    • Background Synchronization
    • Foreground Initialization
    • Rebuild
    • Redundancy Check
    • Disk SMART Polling
    • Online Capacity Expansion (OCE)
    • RAID Level Migration (RLM)
    • UPS Monitoring
    • Feature-rich task scheduler for background activities
  • PerfectRAID Features:
    • Predictive Data Migration (PDM)
    • Intelligent Bad Sector Remapping
    • SMART Error Handling
    • NVRAM Error Logging
    • Disk Slot Power Control
    • Read/Write Check Table
    • Write Hole Table
  • GreenRAID Features:
    • Four levels of advanced power management disk drive (MAID) support
    • Efficient 80Plus Certified power supplies
  • Management Interfaces:
    • Web Based management using WebPAM PROe (Ethernet)
    • Command Line Interface (CLI) or Command Line Utility (Serial Port or Ethernet via Telnet, SSH)
    • Third Party Management Support via SNMP, CIM
  • Supported Operating Systems: Windows Server 2008, 2012, HyperV, OS X 10.x, RHEL 6.5, 6.6, SLES 11, VMware ESX v6.x
  • Voltage: 100--240 Vac Auto--Ranging
  • Current (Maximum): 9A at 100 Vac, 4A at 240 Vac
  • Power Conversion Efficiency: >80% at 110V (>20% load), >80% at 240V (>20% load)
  • Temperature Range: Operational: 5° to 40°C, Non-Operational: -40° to 60°C
  • Humidity: Operational: 10% to 90% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing)
  • Acoustic Noise Levels: 55 dB (Typical), 65 dB (Maximum)
  • Shock: Operational: 5G, 11 ms duration, Non-Operational: 10G, 11ms duration
  • Vibration: Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Promise Technology
  • E5320FSNX2
  • 704118112388
  • New
  • 42.33 lbs
  • 18 X 3 X 17
  • May 30, 2026
  • Sep 18, 2016
Product Identifiers: Brand: Promise Technology • Part #: E5320FSNX2 • UPC: 704118112388 • Category: SAN Disk Arrays
