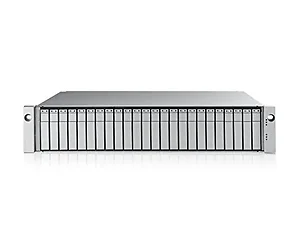

Promise Technology E5320FDNX1 Promise 2U 24-Bay SFF 16G FC RAID with 24TB Storage

Out of Stock
Condition: New

$16,070.74  $21,695.50
 Free Shipping for this Item

Product Overview

The Promise E5320FDNX1 is a high-performance 2U RAID storage subsystem designed to meet the needs of modern data centers. With its 24-bay configuration and 24TB total storage capacity, it efficiently manages and protects critical data. The dual-controller architecture ensures fault tolerance and high availability, making it an ideal solution for enterprise environments.

Technical Specifications

  • Form Factor: 2U/24 Bay
  • Max LUNs per subsystem: 1024
  • Max LUNs per array: 32
  • Hot Spares: Global or dedicated with revertible option
  • Advanced Storage Features:
    • Advanced Cache Mirroring over PCIe Gen3
    • Simple, drag-and-drop LUN Masking and Mapping
    • Asymmetric LUN Unit Access (ALUA)
    • Volume Copy
    • PerfectFlash - Non-Disruptive Software Update
    • I/O performance power monitoring tools
    • USB Service Log
    • LDAP Support for central user management
  • Background Activities:
    • Media Patrol
    • Background Synchronization
    • Foreground Initialization
    • Rebuild
    • Redundancy Check
    • Disk SMART Polling
    • Online Capacity Expansion (OCE)
    • RAID Level Migration (RLM)
    • UPS Monitoring
    • Feature rich task scheduler for background activities
  • PerfectRAID Features:
    • Predictive Data Migration (PDM)
    • Intelligent Bad Sector Remapping
    • SMART Error Handling
    • NVRAM Error Logging
    • Disk Slot Power Control
    • Read/Write Check Table
    • Write Hole Table
  • GreenRAID Features:
    • Four levels of advanced power management disk drive (MAID) support
    • Efficient 80Plus Certified power supplies
  • Management Interfaces:
    • Web Based management using WebPAM PROe (Ethernet)
    • Command Line Interface (CLI) or Command Line Utility (Serial Port or Ethernet via Telnet, SSH)
    • Third Party Management Support via SNMP, CIM
  • Supported Operating Systems:
    • Windows Server 2008, 2012, HyperV
    • OS X 10.x
    • RHEL 6.5, 6.6
    • SLES 11
    • VMWare ESX v6.x
  • Power Specs:
    • Voltage: 100–240 Vac Auto–Ranging
    • Current (Maximum): 9A at 100 Vac, 4A at 240 Vac
    • Power Conversion Efficiency: >80% at 110V (>20% load), >80% at 240V (>20% load)
  • Environmental Conditions:
    • Operating Temperature: 5°C to 40°C
    • Non-Operating Temperature: -40°C to 60°C
    • Operating Humidity: 10% to 90% (Non-Condensing)
    • Non-Operating Humidity: 5% to 95% (Non-Condensing)

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Promise Technology
  • E5320FDNX1
  • 704118112739
  • New
  • 42.33 lbs
  • 18 X 3 X 17
  • Mar 21, 2026
  • Sep 18, 2016
Product Identifiers: Brand: Promise Technology • Part #: E5320FDNX1 • UPC: 704118112739 • Category: Disk Controllers/RAID Cards
