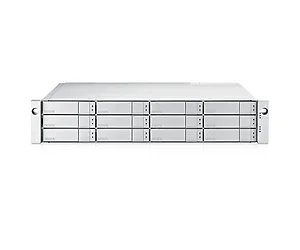

Promise Technology E5300FSQS8 Promise E5300 Removable Storage Solution 12-Bay RAID

Out of Stock
Condition: New

$12,642.59  $17,067.50
 Free Shipping for this Item

Product Overview

The Promise E5300 is a high-performance removable storage solution designed for enterprise applications. With 12 bays supporting up to 96TB of total raw capacity, it offers advanced RAID capabilities and robust data management features. Ideal for businesses looking to enhance their data storage infrastructure.

Technical Specifications

  • Form Factor: 2U/12 Bay
  • Storage Capacity: Up to 96TB with 12x 8TB 7200 RPM 12G SAS HDD
  • Hot Spurs: Global or dedicated with revertible option
  • Max LUNs per Subsystem: 1024
  • Advanced Features:
    • Advanced Cache Mirroring over PCIe Gen3
    • Drag-and-drop LUN Masking and Mapping
    • Asymmetric LUN Unit Access (ALUA)
    • Volume Copy
    • Non-Disruptive Software Updates with PerfectFlash
    • I/O performance monitoring tools
    • USB Service Log
    • LDAP Support for central user management
  • Background Activities:
    • Media Patrol
    • Background Synchronization
    • Foreground Initialization
    • Rebuild
    • Redundancy Check
    • Disk SMART Polling
    • Online Capacity Expansion (OCE)
    • RAID Level Migration (RLM)
    • UPS Monitoring
    • Task scheduler for background activities
  • PerfectRAID Features:
    • Predictive Data Migration (PDM)
    • Intelligent Bad Sector Remapping
    • SMART Error Handling
    • NVRAM Error Logging
    • Disk Slot Power Control
    • Read/Write Check Table
    • Write Hole Table
  • GreenRAID Features:
    • Advanced power management disk drive (MAID) support
    • Efficient 80Plus Certified power supplies
  • Management Interfaces:
    • Web Based management using WebPAM PROe (Ethernet)
    • CLI (Serial Port or Ethernet via Telnet, SSH)
    • Third Party Management Support via SNMP, CIM
  • Supported Operating Systems: Windows Server 2008, 2012, HyperV, OS X 10.x, RHEL 6.5, 6.6, SLES 11, VMWare ESX v6.x
  • Power Requirements:
    • Voltage: 100--240 Vac Auto-Ranging
    • Current: 9A at 100 Vac, 4A at 240 Vac
    • Power Conversion Efficiency: >80% at 110V (>20% load), >80% at 240V (>20% load)
  • Temperature Range: Operational: 5°C to 40°C, Non-Operational: -40°C to 60°C
  • Humidity: Operational: 10% to 90% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing)
  • Acoustic Noise Levels: 55 dB (Typical), 65 dB (Maximum)
  • Shock: Operational: 5G, 11 ms duration, Non-Operational: 10G, 11 ms duration
  • Vibration: Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz
  • Certifications: EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC; Safety: IEEE CB, UL/cUL and TUV

    • Product Details

    • Manufacturer:
    • Model Number:
    • UPC:
    • Condition:
    • Weight:
    • Dimensions:
    • Updated:
    • Added:
    • Promise Technology
    • E5300FSQS8
    • 704118112289
    • New
    • 54.67 lbs
    • 0 X 0 X 0
    • Mar 07, 2026
    • Sep 18, 2016
    Product Identifiers: Brand: Promise Technology • Part #: E5300FSQS8 • UPC: 704118112289 • Category: Disk Controllers/RAID Cards
