E5300FSQS4 - Promise Technology Promise E5300FSQS4 12-Bay 48TB FC RAID Storage System

Special Order
Ships in 1-2 weeks
Condition: New

$10,739.63  $14,498.50
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

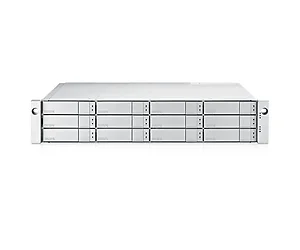

The Promise E5300FSQS4 is a 12-bay 2U FC RAID subsystem designed for high performance and reliability. With a total raw capacity of 48TB using twelve 4TB 7200RPM 12G SAS HDDs, it supports advanced storage features and multiple management interfaces for seamless operation in enterprise environments.

Technical Specifications

  • Form Factor: 2U/12 Bay
  • Max LUNs per Subsystem: 1024
  • Max LUNs per Array: 32
  • Advanced Storage Features:
    • Advanced Cache Mirroring over PCIe Gen3
    • Simple, drag-and-drop LUN Masking and Mapping
    • Asymmetric LUN Unit Access (ALUA)
    • Volume Copy
    • PerfectFlash - Non-Disruptive Software Update
    • I/O performance power monitoring tools
    • USB Service Log
    • LDAP Support for central user management
  • Background Activities:
    • Media Patrol
    • Background Synchronization
    • Foreground Initialization
    • Rebuild
    • Redundancy Check
    • Disk SMART Polling
    • Online Capacity Expansion (OCE)
    • RAID Level Migration (RLM)
    • UPS Monitoring
    • Feature rich task scheduler for background activities
  • PerfectRAID Features:
    • Predictive Data Migration (PDM)
    • Intelligent Bad Sector Remapping
    • SMART Error Handling
    • NVRAM Error Logging
    • Disk Slot Power Control
    • Read/Write Check Table
    • Write Hole Table
  • GreenRAID Features:
    • Four levels of advanced power management disk drive (MAID) support
    • Efficient 80Plus Certified power supplies
  • Management Interfaces:
    • Web Based management using WebPAM PROe (Ethernet)
    • Command Line Interface (CLI) or Command Line Utility (Serial Port or Ethernet via Telnet, SSH)
    • Third Party Management Support via SNMP, CIM
  • Supported Operating Systems: Windows Server 2008, 2012, HyperV, OS X 10.x, RHEL 6.5, 6.6, SLES 11, VMware ESX v6.x
  • Power Specifications:
    • Voltage: 100--240 Vac Auto--Ranging
    • Current (Maximum): 9A at 100 Vac, 4A at 240 Vac
    • Power Conversion Efficiency: >80% at 110V (>20% load), >80% at 240V (>20% load)
  • Environmental Specifications:
    • Temperature Range: Operational: 5º to 40ºC, Non-Operational: -40º to 60ºC
    • Humidity: Operational: 10% to 90% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing)
    • Acoustic Noise Levels: 55 dB (Typical), 65 dB (Maximum)
    • Shock: Operational: 5G, 11 ms duration, Non-Operational: 10G, 11ms duration
    • Vibration: Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz
  • Safety Certifications:
    • EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC
    • Safety: IEEE CB, UL/cUL and TUV

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Promise Technology
  • E5300FSQS4
  • 704118112265
  • New
  • 54.67 lbs
  • 18 X 3 X 20
  • May 30, 2026
  • Sep 18, 2016
Product Identifiers: Brand: Promise Technology • Part #: E5300FSQS4 • UPC: 704118112265 • Category: SAN Disk Arrays
