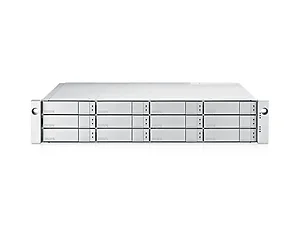

Promise Technology E5300FSNX Promise E5300FSNX 2U 12-Bay 16G FC RAID Subsystem

Name: E5300FSNX Promise Technology Promise E5300FSNX 2U 12-Bay 16G FC RAID Subsystem
Brand: Promise Technology
SKU: UFJSHWFEB6
Price: 5751.05 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Out of Stock
Condition: New

$5,751.05 ~~$7,763.92~~

Product Overview

The Promise E5300FSNX is a powerful 2U 12-bay RAID subsystem designed for demanding storage environments. With its advanced features and high performance, it is ideal for users requiring reliable and scalable storage solutions. The subsystem supports multiple operating systems and provides a range of management options, ensuring seamless integration into existing infrastructures.

Technical Specifications

Form Factor: 2U/12 Bay
Hot Spares: Global or dedicated with revertible option
Max LUNs per Subsystem: 1024
Max LUNs per Array: 32
Advanced Storage Features:
- Advanced Cache Mirroring over PCIe Gen3
- Simple, drag-and-drop LUN Masking and Mapping
- Asymmetric LUN Unit Access (ALUA)
- Volume Copy
- PerfectFlash - Non-Disruptive Software Update
- I/O performance power monitoring tools
- USB Service Log
- LDAP Support for central user management
Background Activities:
- Media Patrol
- Background Synchronization
- Foreground Initialization
- Rebuild
- Redundancy Check
- Disk SMART Polling
- Online Capacity Expansion (OCE)
- RAID Level Migration (RLM)
- UPS Monitoring
- Feature rich task scheduler for background activities
PerfectRAID Features:
- Predictive Data Migration (PDM)
- Intelligent Bad Sector Remapping
- SMART Error Handling
- NVRAM Error Logging
- Disk Slot Power Control
- Read/Write Check Table
- Write Hole Table
GreenRAID Features:
- Four levels of advanced power management disk drive (MAID) support
- Efficient 80Plus Certified power supplies
Management Interfaces:
- Web Based management using WebPAM PROe (Ethernet)
- Command Line Interface (CLI) or Command Line Utility (Serial Port or Ethernet via Telnet, SSH)
- Third Party Management Support via SNMP, CIM
Supported Operating Systems: Windows Server 2008, 2012, HyperV, OS X 10.x, RHEL 6.5, 6.6, SLES 11, VMware ESX v6.x
Voltage: 100–240 Vac Auto–Ranging
Current (Maximum): 9A at 100 Vac, 4A at 240 Vac
Power Conversion Efficiency: >80% at 110V (>20% load), >80% at 240V (>20% load)
Temperature Range: Operational: 5°C to 40°C, Non-Operational: -40°C to 60°C
Humidity: Operational: 10% to 90% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels: 55 dB (Typical), 65 dB (Maximum)
Shock: Operational: 5G, 11 ms duration, Non-Operational: 10G, 11 ms duration
Vibration: Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz
Safety and Emission Certification: EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC; Safety: IEEE CB, UL/cUL and TUV
