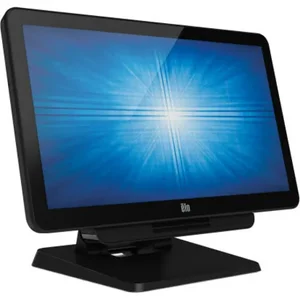

E522109 - Elo X-SERIES 17IN WW CORE I3

Enclosure Color
Black Touch Technology and Capacity
PCAP (TouchPro Projected Capacitive) - 10 Touch Surface Treatment
Anti-glare Processor
Intel Core i3-6100TE Processor
4M Cache, 2.70 GHz
4 MB Intel Smart Cache
8 GT/s Direct Media Interface 3 (DMI3) Graphics
Intel HD Graphics 530 BIOS
AMI Memory (RAM)
4GB 2133MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 16GB maximum2 on 2 slots) Storage
128GB 2.5 SATA SSD 72 TBW
NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less. Chipset
Intel H110 Express RAID
N/A TPM
N/A Active Management Technology (AMT)
N/A Diagonal Size
19.5 diagonal, Active matrix TFT LCD (LED) Control Buttons
Power, brightness up, brightness down, volume up, volume down
Security Lockouts: Power and Control buttons lock. Aspect Ratio
16:9 Active Area (mm)
17.1" x 9.39" / 434.88 mm x 238.68 mm Resolution
1920 x 1080 at 60Hz Number of Colors
16.7 million Brightness (typical)
LCD panel: 250 nits
TouchPro PCAP: 212.5 nits Response Time-total (typical)
20 msec
