Asus E500 G5 INTEL XEON LGA 1151

Operating System
Windows 10 Pro for Workstations
Windows 10 Pro - ASUS recommends Windows 10 Pro.
Windows 10 Home - ASUS recommends Windows 10 Pro.
OS may vary by model. Please check with your ASUS vendor prior to purchase.
Processor / System Bus
1 x Socket LGA1151
Intel Xeon processor E-2100 family
Intel Pentium^TM processors
Intel Celeron^TM processors
Intel Core^TM i7/i5/i3 processors
Core Logic
Intel C246 Chipset
Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 64GB UDIMM
Memory Type :
Dual Channel DDR4 2666/2400 /2133 UDIMM non ECC and with ECC
Memory Size :
16GB, 8GB
( Refer to support page for more information)
Expansion Slots
Total: 6
PCIEX1_1: PCI-E x1 slot, x1 Gen3 Link, from PCH
PCIEX16_1: PCI-E x16 slot, x16/ x8 Gen3 Link, from CPU
PCIEX16_2: PCI-E x16 slot, x8 Gen3 Link, switched from PCIEX16_1, from CPU
PCIEX1_2: PCI-E x1 slot, x1 Gen3 Link, from PCH
PCIEX16_3: PCI-E x16 slot, x4 Gen3 Link, from PCH
PCIEX16_4: PCI-E x16 slot, x4 Gen3 Link, from PCH, shared with 4 SATA
Storage
SATA Controller :
Intel C246 Chipset
8 x SATA3 6Gb/s ports
Intel Rapid Storage Technology(RST) (For Linux/Windows)
(Support Software RAID )
SATA Controller :
1 x M.2 connector(2242/2260/2280/22110) PCIe mode
1 x M.2 connector (2280/2260/2242)
Drive Bays
1x internal 2.5 drive bay
3x internal 3.5 drive bay (or 3x internal 2.5 drive bay: optional cage required)
2x internal 2.5/3.5 drive bay (optional cage required)
Auxiliary Storage FDD/CD/DVD
2 x 5.25" media bays
(Options: No ODD/DVD-RW)
Networking
1 x Intel I210AT
1 x i219-LM
Front I/O Ports
2 x USB 3.1 Gen1
2 x USB 2.0
1 x Headphone port
1 x Microphone port

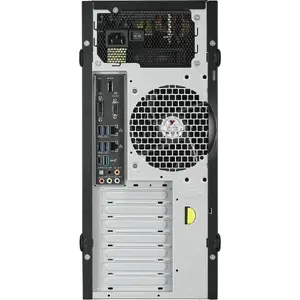

Rear I/O Ports
2 x USB 3.1 Gen2 ports (1 port at Type A, 1 port at Type C)
4 x USB 3.1 Gen1 ports
1 x HDMI
1 x DisplayPort
1 x DVI-D
1 x VGA
2 x RJ-45 ports
1 x 8-channel Audio I/O ports (5 + 1 Audio jacks)
OS Support
Windows 10 64-bit
(Subject to change without any notice)
Regulatory Compliance
BSMI, CCC, CE, FCC(Class B)
Form Factor
Tower
Power Supply
300W 80PLUS Single Power Supply, Bronze
(100-127/220-240V, 6/3A, 60-50Hz, Class I)
500W 80PLUS Single Power Supply, Gold
(100-240V, 7-3.5A, 50/60Hz, Class I)
700W 80PLUS Single Power Supply, Gold
(100-240V, 10-5A, 50/60Hz, Class I)
Environment
Operation temperature: 10^oC to 35^oC
Non operation temperature: -40^oC to 70^oC
Non operation humidity: 20% to 90% ( Non condensing)
Accessory Box
1 x E500 G5 Support CD
1 x Windows 10 Professional 32/64bit Recovery DVD (for OS bundled SKU)
1 x AC Power Cable
1 x COM port Cable
1 x VGA Support CD
Optional Items
Smart Card Reader
Optional Anti-Virus CD pack
OS
DVD-RW/DVD-ROM
Item Dimension (L"xW"xH")
24 x 12 x 26
Weight
54.00 LB
Warranty Information
3 Year
