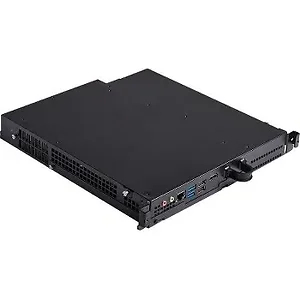

E401558 - Elo COMPUTER MODULE FOR IDS 02 SERIES, INTEL CORE 6TH GEN I5, HD GRAPHICS 530,

Enclosure Color
Black Processor
Intel Core i5-6500 Processor:
(6M Cache, up to 3.60 GHz)
6 MB Intel Smart Cache
8 GT/s Direct Media
Interface 3 (DMI3) Chipset
Intel H110 Chipset Graphics
Intel HD Graphics 530 BIOS
AMI Memory (RAM)
4 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (Expandable to 32 GB maximum on 2 slots) Storage
128 GB 2.5 SATA Solid State Drive (SSD) Max/Slot
Expandable up to 16GB maximum, SO-DIMM DDR4-2400 per slot USB Ports
2 x USB 2.0 Type A, 2 x USB 3.0 Type A Ethernet Port
1 x LAN RJ45 Audio Ports
1 x 3.5 mm Line out
1 x 3.5 mm MIC in Video Out
1 x HDMI (UHD capable) OS
Windows 10 Power Supply
Internal power supply module included Operating Temperature
0^oC to 40^oC / 32^oF to 104^oF Storage Temperature
-20^oC to 60^oC / -4^oF to 140^oF Humidity
Operating: 20% to 80%
Storage: 5% to 90% Real-Time Clock
lithium-ion battery MTBF
50,000 hours demonstrated Whats in the Box
Computer Module
QIG
Screws
VESA Spacer for IDS02
