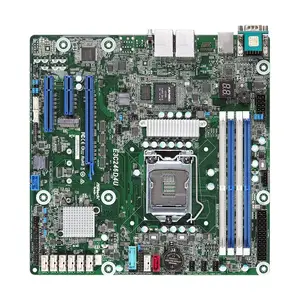

Asrock E3C246D4U Rack E3C246D4U LGA1151/ Intel C246/ DDR4/ SATA3&USB3.0/ V&2GbE/ MicroATX Server Motherboard

Specifications

• Mfr Part Number: E3C246D4U
• CPU: LGA1151
  • Supports Intel Xeon E-2100/E-2200 Processors
• Chipset: Intel C246
• Memory: 4x 288-pin DDR4 DIMM Slots, Dual Channel, ECC/non-ECC UDIMM, Max Capacity of 128GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 3.0 x8 Slot, 1x PCI-Express 3.0 x4 Slot
• SATA: 8x SATA3 6Gb/s (SATA0-7, SATA0 supports SATA DOM, and is shared with M.2(PCIE3.0(x4))/ SATA3)
• Video: Aspeed AST2500 Graphics DDR4 16MB VRAM
• LAN: 2x RJ45 GLAN by Intel i210, 1x Realtek RTL8211E for dedicated management GLAN
• Ports: 1x D-Sub VGA Port, USB 3.1 Gen2 Port(2(Gen2), 2(Gen1)), 2x RJ45 GLan Port, 1x RJ45 Dedicated IPMI LAN port, LAN Ports with LED (ACT/LINK LED and SPEED LED), 1x Serial Port, 1x UID Button/UID LED
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power Connector
• Form Factor: Micro ATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
