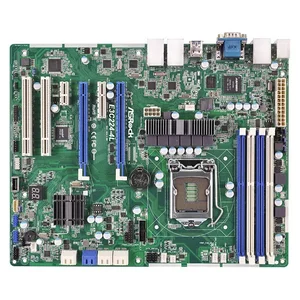

Asrock E3C224-4L;E3C224-4L/C2 Rack E3C224-4L ATX Server Motherboard LGA1150

Specifications

• CPU: LGA1150
  • Supports Intel Xeon E3-1200 v3 Series & Haswell i3 Processors
  • 6 Power Phase Design
  • Supports Hyper-Threading Technology
• Chipset: Intel C224
• Memory: 4x 240pin DDR3-1600/1333 DIMM Slots, Dual Channel, ECC, Unbuffered, Max Capacity of 32GB
• Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x8/x4), 1x PCI-Express 2.0 x4 Slot (runs at x0/x4), 1x PCI-Express 2.0 x1 Slot, 2x PCI Slots
• SATA: 6x SATA3 Ports, Four Support RAID 0, 1, 5, 10; Two Support RAID 0, 1; 2x SATA2 Ports, Support RAID 0, 1, 5, 10
• Video: Aspeed AST2300 Graphics with 16MB DDR3 Video Memory
• LAN: 4x Intel i210 Gigabit Ethernet Controllers; 1x Realtek RTL8211E for Dedicated Management GLAN
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 7x USB 2.0 Ports (2 rear, 4 via headers, 1 Type A), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power Connector
• Form Factor: ATX, 12.0 x 9.6 inches / 30.5 x 24.4 cm
