Product Overview

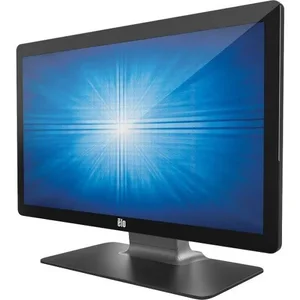

CONTROLLER, CLEAR, ZERO-BEZEL, VGA AND HDMI VIDEO INTERFACE, BLACK, WORLWIDE. N
Technical Specifications
Part Number(s)
With Stand - E351997 Enclosure Color
Black Touch Technology and Capacity
PCAP (TouchPro Projected Capacitive) - 10 Touch Diagonal Size
27 diagonal, Active matrix TFT LCD (LED) Aspect Ratio
16:9 Active Area (mm)
23.54" x 13.24" / 597.88 x 336.31 mm Resolution
1920 x 1080 at 50, 60Hz Other Supported Resolutions
640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 500 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 720 at 58Hz, 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB Viewing Angle
Horizontal: +/-89o or 178o total / Vertical: +/-89o or 178o total Number of Colors
16.7 million Brightness (typical)
LCD Panel: 300 nits
TouchPro PCAP: 270 nits Response Time-total (typical)
14 msec Contrast Ratio
1000:1 Touch Interface
USB Surface Treatment
Clear On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
Lockouts: OSD, Power I/O Ports
VGA
HDMI
Combo Jack
DC jack
USB Type B
USB 2.0 Type A
4x Micro USB Speakers
Two x 2W internal speakers Input Video Format
VGA (VGA DE-15 (DB-15) Male connecter cable included)
HDMI (HDMI cable included) Input Video Frequency
Horizontal: 30 - 82KHz
Vertical: 50 - 75Hz
