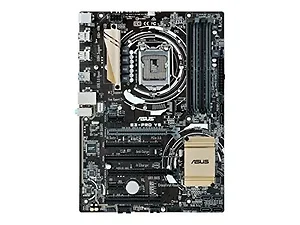

E3-PRO V5 - Asus 3 PRO V5 MOTHERBOARD /WITH SUPPORT FOR BOTH INTEL XEON E3 V5 AND CORE PROCESSORS

CPU
Intel Socket 1151 for Xeon E3-1200 v5 and 6th genereation CoreTM, Pentium and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
Chipset
Intel C232
Memory
4 x DIMM, Max. 64GB, DDR4 2133 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Multi-GPU Support
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
2 x PCIe 3.0/2.0 x1
2 x PCI
Storage
1 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA PCIE SSD)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology Enterprise supports
LAN
Intel I219LM, 1 x Gigabit LAN Controller(s), GameFirst technology
Anti-surge LANGuard
Audio
SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature : - SupremeFX Shielding Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II
USB Ports
ASMedia USB 3.1 controller : 1 x USB 3.1 port(s) (Type-A)
ASMedia USB 3.1 controller : 1 x USB 3.1 port(s) (Type-C, Reversible)
Intel C232 chipset : 6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel C232 chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
Operating System Support
Windows 10 , 64bit
Windows 8.1 , 64bit
Windows 7 , 32bit/64bit
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
1 x USB 3.1 (red)Type-A
1 x USB 3.1 Type-C
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA PCIE SSD)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x Water Pump header (4-pin)
1 x ROG extension (ROG_EXT) header(s)
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Form Factor
ATX Form Factor
Item Dimension (L"xW"xH")
11 x 13 x 3
Weight
3 lb
Warranty Information
3 Year
