Product Overview

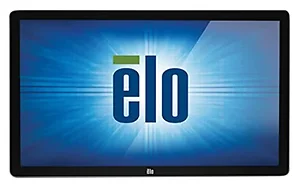

This LCD Touch Monitor provides interactive digital signage for your establishment in a modern, integrated fashion. It is flexible and lightweight enough to be mounted in multiple positions and easily displayed in public environments. This ELO monitor is manufactured with professional-grade hardware and a strengthened, high-quality clear glass that can withstand the rigors of continuous use. It is specially designed with infrared technology that can support ten simultaneous touches for quick and reliable multi-user interaction. It has a 1920x1080 resolution for a crisp, detailed image that will fill the screen.
Technical Specifications
Enclosure Color
Black Touch Technology and Capacity
Infrared - 10 Touch Touch Interfaces
USB Diagonal Size
31.5 inch diagonal, Active matrix TFT LCD (LED) Active Area (mm)
27.49" x 15.47" / 698.4mm x 392.9mm Aspect Ratio
16:9 Resolution
1920 x 1080 at 60hz Viewing Angle
Horizontal: +/-89o or 178o total / Vertical: +/-89o or 178o total Number of Colors
16.7 million Brightness (typical)
IR: 450 Response Time-total (typical)
8 msec Contrast Ratio
3000:1 I/O Ports
Input: AC power input, USB type B (for Touch), VGA, 2x HDMI, GPIO, DisplayPort, Audio Line in Output: Audio Headphones out, RJ45 (for optional OSD remote) Input Video Frequency
Horizontal: 31.5 - 73 KHz
Vertical: 47 - 63 Hz Audio Input Connector
3.5 mm TRS jack Audio Input Signal Range
1Vrms max stereo signal (standard PC line out) Headphone Output Connector
3.5 mm TRS jack Speakers
4 x 5 W stereo speakers Power Supply
AC internal - Replacement power cables are available with the purchase of a replacement cable kit - Elo P/N: E060080 Input Connector
IEC 60320 C6
