| Main Specifications |

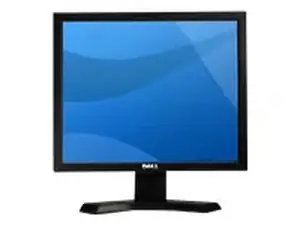

| Product Description | Dell E170S - LCD display - TFT - 17" |
| Device Type | LCD display / TFT active matrix |
| Color | Black |
| Dimensions (WxDxH) | 14.8 in x 5.4 in x 15 in |
| Weight | 9.5 lbs |
| Diagonal Size | 17" |
| Viewable Size | 17" |
| Dot Pitch / Pixel Pitch | 0.264 mm |
| Max Resolution | 1280 x 1024 / 60 Hz |
| Display Positions Adjustments | Tilt |
| Color Support | 16.7 million colors |
| Image Aspect Ratio | 4:3 |
| Response Time | 5 ms |
| Image Brightness | 250 cd/m2 |
| Image Contrast Ratio | 800:1 |
| Signal Input | VGA |
| Microsoft Certification | Compatible with Windows 7 |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 17 Watt |
| Environmental Standards | ENERGY STAR Qualified , EPEAT Gold |
| Manufacturer Warranty | 3 years warranty |
| General | |
| Display Type | LCD display / TFT active matrix |
| TFT Technology | TN |
| Width | 14.8 in |
| Depth | 5.4 in |
| Height | 15 in |
| Weight | 9.5 lbs |
| Enclosure Color | Black |
| Display | |
| Diagonal Size | 17" |
| Viewable Size | 17" |
| Dot Pitch / Pixel Pitch | 0.264 mm |
| Max Resolution | 1280 x 1024 / 60 Hz |
| Color Support | 16.7 million colors |
| Response Time | 5 ms |
| Display Positions Adjustments | Tilt |
| Signal Input | VGA |
| Features | 85% color gamut |
| Image | |
| Image Aspect Ratio | 4:3 |
| Image Brightness | 250 cd/m2 |
| Image Contrast Ratio | 800:1 |
| Image Max H-View Angle | 160 |
| Image Max V-View Angle | 160 |
| Video Input | |
| Analog Video Signal | RGB |
| Expansion / Connectivity | |
| Interfaces | 1 x VGA - 15 pin HD D-Sub (HD-15) 1 x DVI-D - 15 pin HD D-Sub (HD-15) |
| Miscellaneous | |
| Included Accessories | Stand |
| Cables Included | 1 x VGA cable |
| Flat Panel Mount Interface | Yes |
| Features | Security lock slot (cable lock sold separately), cable organizer |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsofts assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Power | |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 17 Watt |
| Power Consumption Stand by / Sleep | 1 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Environmental Standards | |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Qualified | Yes |
| Manufacturer Warranty | |
| Service & Support | 3 years warranty |
| Service & Support Details | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 41 F |
| Max Operating Temperature | 95 F |
| Humidity Range Operating | 10 - 80% |
