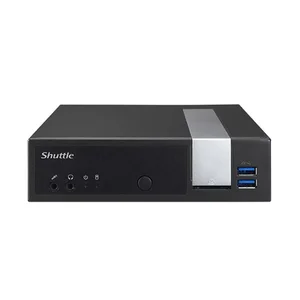

Shuttle Computers DX30 Shuttle System DX30 Apollo Lake J3355 Support max. 8GB RAM and M.2 Retail

FORM FACTOR
1.3L slim form factor PROCESSOR
Intel Apollo Lake J3355 CPU Processor MEMORY
2 x DDR3L SO-DIMM, supports up to 8GB DDR3L 1866 MHz VIDEO OUTPUT
Intel generation HD Graphic engine AUDIO
Realtek ALC662
2 channel High Definition Audio ETHERNET
Intel i211 Gigabit LAN controller
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature
802.11b/g/n WLAN support (1T1R) STORAGE INTERFACE
SATA for HDD/SSD
SD card reader FRONT PANEL
(1) Power button
(1) Power Led
(1) HD Led
(1) SD Card reader
(2) USB 3.0 port
(1) MIC-IN
(1) Audio out BACK PANEL
(1) RJ45 Gigabit LAN port
(1) HDMI port
(1) Display port
(4) USB 2.0 ports
(1) DC in
(1) RS232/RS422/RS485
(1) RS232
(1) External power on/Clear CMOS header
(1) PS/2 Port
(1) Connectors for WLAN antenna DRIVE BAYS
(1) 2.5" HDD Max.(9.5mm) / SSD bay POWER
Input:100- 240V AC
Output: 19V/2.1A or 12V/3.33A DC
40W 19V Adapter bundled ACCESSORIES
" Optional " PVG01 (VGA output) EXPANSION SLOT
(1) M.2 Type M (2280)
(1) M.2 Type A/E (2230) OS SUPPORT
Windows 10 64 bit O.S
Ubuntu Linux O.S Item Dimension (L inchxW inchxH inch)
11 x 10 x 6

Weight
4.00 lb

Warranty Information
3 Years
