Product Overview

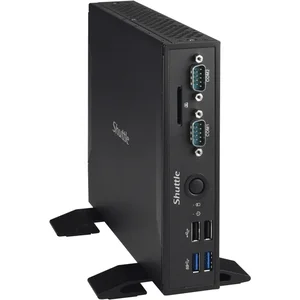

Shuttle DS77U is a fanless ultra-slim PC powered by 7th generation of Intel Celeron 3865U dual-core processor with its powerful graphics engine capable of playing 4K ultra high definition video content. With a slim profile of less than 40 mm and the international VESA mounting standards, allows users to decide the most appropriate back placement configuration depending on different environments. The DS77U3 is highly connectable with USB3.0/USB2.0, two COM ports (RS232, RS232/422/485), and dual Intel Gigabit LAN ports. Compared to previous mainstream models, the DS77U3 is the first model to provide two HDMI and one DisplayPort to support up to triple Full HD displays. The DS77U3 designed for support both 12 Volts and 19 Volts inputs, is an industry-grad signage platform for use in commercial applications which require long-term operation such as automotive, digital signage, kiosk and more.
Technical Specifications
FORM FACTOR
Shuttle 1.3L Chassis PROCESSOR
Intel Kabylake-U Celeron 3865U 15W CPU MEMORY
2 x 260 pin DDR4 SODIMM slots, 16GB per DIMM (Max 32GB)
Dual Channel DDR4 2133Mhz VIDEO OUTPUT
DisplayPort without Audio+ HDMI dual display AUDIO
Realtek ALC662 2 channel High Definition audio ETHERNET
Intel i211 and i219LM
100Mb/s and 1Gb/s operation
Support Wake-On-LAN function
Realtek RTL 8188EE 802.11 b/g/n WLAN module STORAGE INTERFACE
6.0Gb/s bandwidth SATA3 BACK PANEL
(1) 2.5 inch SATA connector
(1) Auto Power on Jumper
(1) Clear CMOS FRONT PANEL
(1) Power on button
(1) Power LED
(1) HDD LED
(2) USB 2.0 ports
(2) USB 3.0 ports
(1) RS232/RS422/RS485
(1) RS232
(1) SD Card reader DRIVE BAYS
(1) 2.5" HDD / SSD bay POWER
Input:100- 240V AC
Output: 19V/3.42A or 12V/5.42A DC
65W 19V Adapter bundled EXPANSION SLOT
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type A,E Key socket OS SUPPORT
Windows 10
Linux Item Dimension (L inchxW inchxH inch)
11 x 6 x 10
Weight
4.00 lb
Warranty Information
3 Year
