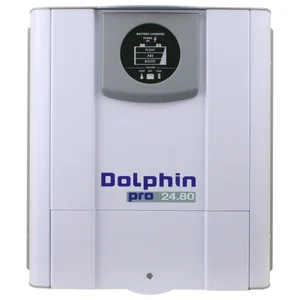

Dolphin Charger 99505 Dolphin Pro Series 24V 80A Battery Charger - 230VAC

Dolphin Pro Series 24V 80A Battery Charger - 230VAC

The Dolphin Pro Series battery charger is renowned for its superior quality, backed by a 2-year warranty. Designed for both large and small scale applications, this charger delivers high efficiency at a competitive price point.

This model is suitable for charging battery banks of up to 1000 amps. An optional TouchView touchscreen is available, providing an intuitive display for monitoring charging phases (boost, absorption, and float), available power, and potential operational faults. With CAN bus communication capability, it is ideal for professional use across various energy management sectors.

Key Features:

• 24V-80A Dolphin Pro designed for 230 VAC 50/60 Hz input voltage
• CE-marked and manufactured in compliance with UL and ABYC standards
• Optional TouchView remote for enhanced control over charger functions
• LED display for programming and monitoring
• Temperature sensor for optimal battery charging
• Advanced switch mode technology with three-stage charging
• Modern, compact design with durable white aluminum housing
• Universal AC input with automatic voltage switching (115/230 VAC)
• Simple installation with easy access removable panel
• Manufactured in an ISO 9002-certified facility

Charging Stages Explained:

Bulk Stage: High current charging until the battery reaches 80% capacity.

Absorption Stage: Voltage is maintained with reduced current until fully charged.

Float Stage: Voltage and current are lowered to keep the battery maintained.
