Product Overview
Designed to enhance the performance of networked equipment, protecting against the harmful effects of lightening, electrostatic discharge and ground surges. RJ45 100 & 10Base-T, token ring, AS400/Sys3x, RS422 (wires 1-8) for NICS, terminals, hubs, etc.
Technical Specifications

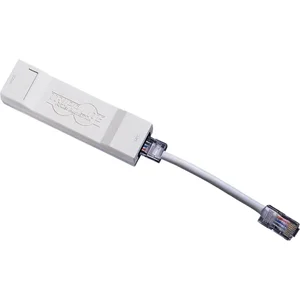

- DNET1 protects network workstations, printers and internetworking devices from surges present on 10/100Base-T, token ring, AS400 / Sys3x or RS422 network lines - Convenient RJ45 input and output connections make for simple installation (RJ45 input/output connections, pins 1-8, 7.5V clamping) - 5 inch ethernet patch cable enables ideal protection placed as close as possible to the point of use - Surge suppression utilizing high speed avalanche diodes divert excess energies on the network to ground - 6 inch heavy gauge grounding lead connects to designated grounding lugs on protected equipment - TYPICAL APPLICATIONS - Ideal for the protection of network workstations, printers and other internetworking devices with a network ethernet connection .Ideal for NICs, terminals, hubs, MAUs, LAN equipment - PACKAGE INCLUDES - DNET1 dataline protector , 5-in. RJ45 patch cable , Warranty information and instruction manual - System overview - Protects 100Base-T, 10Base-T, Token Ring, AS400/Sys3x, RS422. RJ11/45 compatible. - Additional Dataline protection - Protects pins 1-8 of an 8 position RJ connector. Peak pulse clamping voltage - 7.5V. Max current 750 amps. Shunt capacity 30pF.
