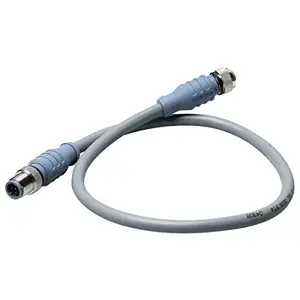

Maretron DM-DG1-DF-03.0 Mid Double-Ended Cordset - 3 Meter - Gray

3 Available
Condition: New

$54.94  $74.17
 Free Shipping for this Item

Product Overview

Maretron Mid Double-Ended Cordset - 3 M Gray

Mechanical:
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"

    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3




























    • Product Details

    • Manufacturer:
    • Model Number:
    • ASIN:
    • UPC:
    • Condition:
    • Weight:
    • Dimensions:
    • Updated:
    • Added:
    • Country of Origin:
    • Maretron
    • DM-DG1-DF-03.0
    • B00C1KWGOU
    • 873804001791
    • New
    • 1 lbs
    • 10 X 10 X 6
    • Mar 19, 2026
    • Dec 23, 2021
    • MEXICO
    Product Identifiers: Brand: Maretron • Part #: DM-DG1-DF-03.0 • UPC: 873804001791 • ASIN: B00C1KWGOU • Category: Consumer Electronics
