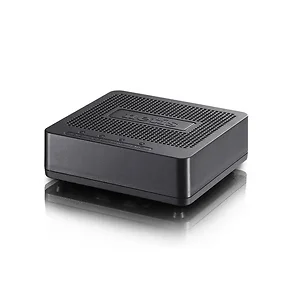

DL4201 - Netis-systems netis DL4201 ADSL2+ Modem Router for Fast Internet Access

Specifications

• 2 in 1: Combines ADSL2/2+ Modem and Router in one device.
• Quick Start Wizard: Helps you set up your network in minutes.
• Slim Body Design: Ideal for home and office use.
• LED Indicators: Shows port activity for better monitoring.
• Hardware:
  • Interface: 1x 10/100M Auto MDI/MDIX RJ45 Port, 1x RJ11 Port.
  • LED: Internet, ADSL, LAN, Power.
  • Power Supply: 5V DC / 0.8A (Output).
  • Dimensions: 69.0 x 72.0 x 25.0 mm.
• Software:
  • Standards: IEEE 802.3, IEEE 802.3u.
  • Data Rate:
    • Upstream: Up to 1Mbps.
    • Downstream: Up to 24Mbps.
  • ADSL Features: Full-Rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-T G.992.2 (G.Lite), ITU-T G.992.3, ITU-T G.992.5, ITU-T K.2.1.
  • ATM/PPP Protocols:
    • ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs).
    • ATM Adaptation Layer Type 5 (AAL5).
    • ATM QoS.
    • Bridged and Routed Ethernet Encapsulation.
    • VC and LLC Based Multiplexing.
    • PPP over Ethernet (RFC2516).
    • PPP over ATM (RFC 2364).
    • IPoA (RFC11577/2225).
  • Main Features:
    • DHCP, DHCP Relay.
    • NAT, Static Routing.
    • VPN (PPTP, L2TP, IPSec) Pass-Through.
    • PVC/Ethernet Port Mapping.
    • DNS Relay, DDNS.
    • IGMP Multicast, IGMP Snooping V1/V2.
    • Virtual Server, DMZ, ACL (Access Control List).
    • UPnP.
  • Management:
    • Web Based Configuration (HTTP).
    • Remote Management.
    • Telnet Management.
    • Command Line Interface.
    • TR-069, SNMP.
    • Web Based Firmware Upgrade.
    • CWMP (TR-069).
    • Diagnostic Tools.
• Others:
  • Certification: FCC, CE.
  • Environment:
    • Operating Temperature: 0°C~40°C.
    • Storage Temperature: -40°C~70°C.
    • Operating Humidity: 10%~90% RH, non-condensing.
    • Storage Humidity: 5%~90% RH, non-condensing.
  • Package Contents: DL4201, Quick Installation Guide, Power Adapter, 2x Brackets, Ethernet Cable, 2x RJ11 cables, Splitter.
