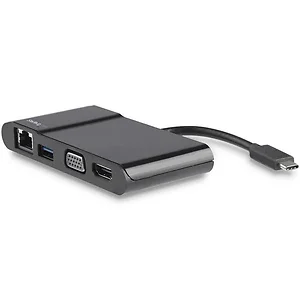

DKT30CHV - Startech USB-C Multifunction Adapter for Laptops 4K HDMI VGA USB 3.0

Hardware:
4K Support
Yes

Bus Type
USB 3.0

Chipset ID
Cypress - CYPD2122 (CC Logic)
Cypress - CYUSB3314 (USB 3.0)
STMicroelectronics - STDP2650 (HDMI)
Chrontel - CH7517 (VGA)
ASIX - AX88179 (LAN)

Displays Supported
1

Fast-Charge Port(s)
No

Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0/1.1 Performance:
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Maximum Analog Resolutions
2048 x 1280p (VGA)
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet, Full-Duplex)
Maximum Digital Resolutions
3840 x 2160p (HDMI)
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes Connector(s):
Connector Type
1 x USB Type-C (24 pin) USB 3.0 Male
1 x HDMI (19 pin) Female
1 x VGA (15 pin High Density D-Sub) Female
1 x RJ-45 Female
1 x USB Type-A (9 pin) USB 3.0 Female Software:

OS Compatibility
Windows 10 (32-bit or 64-bit), 8 / 8.1 (32-bit or 64-bit)
Mac OS 10.10 and later (tested up to 10.11)Chrome OS

System and Cable Requirements
Host laptop with an available USB-C port (to ensure full functionality, the laptops USB-C port must support DP alt mode). Software:
OS Compatibility
Windows 10 (32-bit or 64-bit), 8 / 8.1 (32-bit or 64-bit)
Mac OS 10.10 and later (tested up to 10.11)Chrome OS
System and Cable Requirements
Host laptop with an available USB-C port (to ensure full functionality, the laptops USB-C port must support DP alt mode). Environmental:

Humidity
5-95 percent RH (Non-condensing)

Operating Temperature
5^oC to 35^oC (41^oF to 95^oF)

Storage Temperature
-40^oC to 70^oC (-40^oF to 158^oF) Physical Characteristics:
Cable Length
4.1 in (105 mm )
Color
Black
Enclosure Type
Plastic Package Contents
1 x USB-C multiport adapter for laptops
1 x instruction manual Item Dimension (L inchxW inchxH inch)
8 x 5 x 13

Weight
4.00 lb

Warranty Information
2 Years
