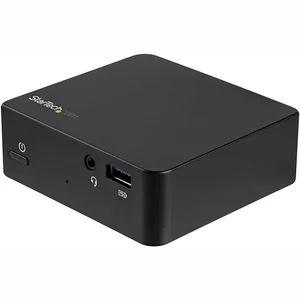

Startech DK30CHDPD USB C Dock - 4K HDMI - 85W Power Delivery - Charging - Windows - Mac - USB C to HDMI Laptop Docking S
Out of Stock
Condition: New
$193.70$261.50
Free Shipping for this Item
Product Overview
This USB-C dock gives you all the connections you need to turn your USB-C enabled laptop or tablet into a fully capable workstation, with support for a single external 4K HDMI monitor or ultrawide monitor. With USB Power Delivery 2.0 (85W), you can power and charge your laptop as you work, eliminating the need to use a separate power adapter with your laptop. It’s the perfect companion for your MacBook Pro or other Thunderbolt 3 equipped laptop or tablet. The USB-C dock helps you maximize your workspace, ideal for smaller or shared work areas using one monitor. The dock expands the display capabilities of your laptop, connecting to an HDMI display with support for resolutions including: 4096x2160 at 30Hz, 3840 x 2160 at 30Hz, 2560x1600 @60 Hz, 1920 x 1200 at 60Hz.
Technical Specifications
HARDWARE 4K Support:Yes Bus Type:USB-C Chipset ID: Parade - PS176 Realtek - RTL8153 Realtek - RTS5411 C-Media - CM6533 Displays Supported:1 Fast-Charge Port(s):Yes Industry Standards: USB Power Delivery Specification Rev. 2.0 USB Battery Charging Specification Rev. 1.2 DisplayPort 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 Interface:USB 3.0 PERFORMANCE Auto MDIX:Yes Compatible Networks:10/100/1000 Mbps Full Duplex Support:Yes Maximum Data Transfer Rate: 5 Gbps (USB 3.0) 2 Gbps (Ethernet Full-Duplex) Maximum Digital Resolutions: HDMI - 4096x2160 at 30Hz, 3840 x 2160 at 30Hz, 2560x1600 at 60 Hz, 1920 x 1200 at 60Hz UltraWide - 3440 x 1440p 60 Hz PXE:Yes Type and Rate:USB 3.0 - 5 Gbit/s UASP Support:Yes SOFTWARE OS Compatibility: Windows 7, 8, 8.1, 10 Mac OS 10.11 to 10.13 SPECIAL NOTES / REQUIREMENTS Note : Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode. Supports 4K resolution. A 4K-capable HDMI display is required to achieve 4Kx2K resolution. USB 3.0 is also known as USB 3.1 Gen 1 this connectivity standard offers speeds up to 5Gbps System and Cable Requirements:USB-C enabled computer with an available USB Type-C port POWER Center Tip Polarity:Positive Input Current:2 A Input Voltage:100 to 240 AC Output Current:5 A Output Voltage:20V DC Plug Type:N Power Consumption (In Watts) :100W Power Delivery:85W Power Source:AC Adapter Included ENVIRONMENTAL Humidity:5% to 95% RH (Non-condensing) Operating Temperature: 0oC to 40oC (32oF to 104oF) Storage Temperature:-10oC to 70oC (14oF to 158oF) PHYSICAL CHARACTERISTICS Color:Black Enclosure Type:Plastic WHATS IN THE BOX Included in Package: 1 - docking station 1 - 3.3 ft 1 m USB-C cable 1 - universal power adapter (NA/JP, ANZ) 1 - quick-start guide Item Dimension (L"xW"xH") 7 x 8 x 4 Weight 2.29 LB Warranty Information 3 Year Warranty
