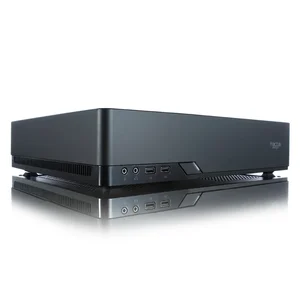

part number changed to NODE202AAUS The Node 202 is the ultimate PC case for those looking for a beautifully designed, compact chassis that can house a capable gaming build in a small form factor. The Integra SFX 450W PSU that comes inclusive with the enclosure provides stable power to the most demanding systems. Featuring a sleek and elegant design that will fit in any space or room. Extremely small footprint with a volume of only 10.2 liters. A highly versatile case that can be set up both vertically and horizontally. Supports Mini-ITX motherboards, SFX power supplies and graphics cards up to 310mm in length. Provides a smart thermal interior design highlighting separate motherboard and graphics card chambers. Strategically placed air filters for a dust free interior. Includes a Fractal Design Integra SFX 450W power supply with specialized cables for the Node 202 case, providing the right connectors with precise cable lengths. Quiet and efficient operation at 80PLUS Bronze efficiency with a 3 year warranty .
Technical Specifications
Specifications Mini ITX motherboard compatibility 2 - 2.5 SSD unit positions (height limitation 10.5mm) 2 expansion slots 2 - 120mm optional fan positions in graphics card chamber CPU coolers up to 56 mm in height PSU compatibility: SFX PSUs up to 130mm long Graphics card compatibility: Maximum dimension of graphics card is 310x145x47mm (LxHxD) Can be placed both vertical and horizontal position 3 dust filters included (for CPU, GPU and PSU) Case volume: 10.2 litres Colors available: Black Specifications - Integra SFX 450W 80PLUS Bronze certification 80mm, temperature controlled fan Maximum operating temperature at full load: 50oC (50oC at 100%) Fully Intel Haswell C6/C7 compliant 3 years warranty Taiwanese capacitors OPP / OVP / UVP / SCP / OCP Protection Can be placed both vertical and horizontal position 100,000 hours life expectancy (MTBF) SFX 3.3 PSU specification compliance ErP 2013 compliant (<0.5W system power draw) Colors available: Black Cable configuration 1xATX 24-pin (20+4) 300 mm 1xATX 12V 8-Pin (4+4) 400 mm 2xPCI-E 8-pin (6+2) 400 + 100 mm 2xSATA 150 + 100 mm DC Output - Integra SFX 450W 3.3V 21A 5V 22A 3.3 and 5V combined 120W 12V1 18A 12V2 18A -12V 0.5A 5V Standby (+5Vsb) 2.5A Total power 450W Front interface 2 - USB 3.0 Audio in/out Power button with LED (white) Package contents Node 202 compupter case Integra SFX 450W power supply Accessory box User manual Vertical stand Riser card for graphics card Item Dimension (L"xW"xH") 16 x 6 x 19 Weight 14.00 LB Warranty Information 2 years
