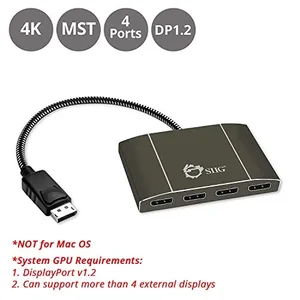

SIIG?s DisplayPort 1.2 to 4-Port DisplayPort MST Splitter enables you to connect up to four DisplayPort monitors simultaneously through a single DisplayPort 1.2 video output from your desktop or laptop computer. It supports UHD resolution of up to 3840x2160 (4Kx2K) and 7.1-ch surround audio to deliver stunning video images and high fidelity sound quality. Premium aluminum constructed housing minimizes surrounding interference to ensure optimal video quality. Built-in woven braided cable enhances protection for extended durability and reliability. Unlike standard external USB based video adapters that consume significant resources from the computer to support multi-video output processing or high resolution applications, this high performance splitter is engineered with Multi-Stream Transport (MST) technology utilizing only the system?s video resources to smoothly and efficiently stream video contents without dragging down the system performance. It features multiple display modes including Mirror, Extended and Panoramic Video Wall mode across 4 monitors to support multitasking operation for maximum productivity. The DisplayPort 1.2 to 4-Port DisplayPort MST Splitter is the ultimate cost-effective video expansion solution to improve your system?s video processing performance, turning your computer into a high performance workstation for HD applications such as image editing, graphic design, digital signage, data processing and analyzing, gaming and more.
Technical Specifications
Chipset STDP4320 Maximum resolution up to 3840x2160 at 30Hz Compliant with DisplayPort 1.2a specifications Display Modes Mirror, Extend, Panoramic video wall Note: 1. Mirror mode limited to 2 displays 2. AMD Eyefinity, NVIDIA Surround or Intel Multiple collage technology graphics adapter is required to support Panoramic Video Wall mode Total Bandwidth 21.6Gbps (100%) 3840x2160 at 30Hz(40%), 2560x1600 at 60Hz (38%), 2560x1440 at 60Hz (35%), 1920x1200 at 60Hz (30%), 1920x1080 at 60Hz (22%) Note: The total combined bandwidth among all connected displays must NOT be exceeded Color Deep brown Housing Aluminum Connector 1x 20-pin, DisplayPort, Male, Input 4x 20-pin, DisplayPort, Female, Output 1x 5-pin, Micro USB, Female, USB power Input Environmental conditions Operating temperature: 32 to 104 degrees F Storage temperature: -4 to 158 degrees F Relative humidity 5% to 90% RH (non-condensing) Certifications/Standards FCC, CE, RoHS Item Dimension ( L inch x W inch x H inch) 1 x 5 x 8 Weight 1.00 lb Warranty Information 2 years
Product Details
Manufacturer:
Model Number:
ASIN:
UPC:
Condition:
Weight:
Dimensions:
Updated:
Added:
Siig
DHCEDP0E12S1
B0761DWK8K
662774040851
New
0.5 lbs
8 X 1 X 6
May 30, 2026
Jul 24, 2020
Product Identifiers:
Brand: Siig •
Part #: DHCEDP0E12S1 • UPC: 662774040851 • ASIN: B0761DWK8K • Category: AV Cables & Adapters
