Product Overview

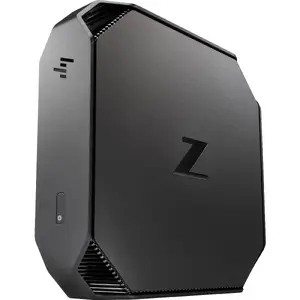

The system is powered by a 3.6 GHz Intel Xeon E-2144G Quad-Core processor that will allow you to run multiple applications simultaneously and can be boosted up to 4.5 GHz. The 16GB of 2666 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. While the current memory configuration is 2 x 8GB, there are two 260-pin SO-DIMM memory slots that will allow the RAM to be upgraded to 32GB, using a 16GB chip in each of the two slots. For storage of your files, the 512GB Z Turbo Drive G2 PCIe SSD has an M.2 2280 form factor, uses the PCIe 3.0 x4 bus, and offers quick access to your data. For additional internal storage, there is an empty 2.5" / 9.5mm drive bay for a SATA hard drive or SSD.. If you want to add external storage drives or other peripherals, the Z2 Mini G4 features two 10 Gb/s USB 3.1 Gen 2 Type-C ports and four USB 3.1 Gen 1 Type-A ports, with one of the Type-A ports doubling as a charging port. The dedicated NVIDIA Quadro P600 graphics card has 4GB of GDDR5 RAM, delivers a sharp, clear picture, and features three DisplayPort 1.2 outputs which support a maximum resolution of 4096 x 2160 @ 60 Hz. Whether you are listening to music, watching a movie, or playing a game, the integrated Conexant CX20632 5.1 audio codec outputs high definition audio and delivers higher fidelity than standard audio controllers. The Z2 Mini G4 Workstation includes a USB keyboard, a USB mouse, and a power cord. It runs using a 200W external 3-pin slim power supply that is 89% efficient and operates using 100-240 VAC at 47-63 Hz. The installed operating system is Windows 10 Pro (64-bit).
