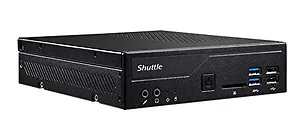

DH310V2 - Shuttle Computers BB SLIM 1.3L INTEL H310

ORM FACTOR
1.3L chassis PROCESSOR
Support Intel 8th Generation Core^TM i3/i5/i7, Pentium, Celeron LGA1151v2 CPU max. TDP 65W CHIPSET
Intel H310 Express chipset MEMORY
2 x DDR4 SODIMM slots,16GB per DIMM (Max 32GB)
DDR4 2400/2666 MHz
VIDEO OUTPUT
HDMI 2.0 + DisplayPort, Dual video output
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIO
Realtek ALC662 High Definition Audio ETHERNET
Intel i211x2 Dual Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
Support Teaming functionV STORAGE INTERFACE
SATA 6.0Gb/s interface ONBOARD CONNECTORS
(1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch
FRONT PANEL
(2) USB 2.0 ports
(2) USB 3.1 Gen1 ports
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
(1) SD Card reader
BACK PANEL
(2) RJ45 Gigabit LAN port
(1) HDMI port
(1) Display port
(2) USB 2.0 ports
(2) USB 3.1 Gen1 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DRIVE BAYS
(1) 2.5" HDD / SSD bay POWER
90W Power Adapter
Input:100- 240V AC
19V 4.74A DC or Output:12V/7.5A DC
ACCESSORIES
XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
90W adapter
EXPANSION SLOT
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
Item Dimension (L"xW"xH")
11 x 10 x 6
Weight
5.50 LB
Warranty Information
3 years
