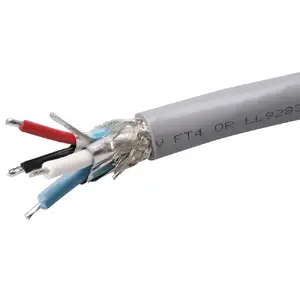

DG1-100C - Maretron High-Performance Bulk Cable - 100 Meter - Gray

Specifications

Overall

• Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1
• Insulation Material: PE (data wires), PVC (power wires)
• Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

Power Pair

• Wire: 2x16 (1.29mm) AWG
• Resistance/Conductor: 4.1 Ohms/1000 ft max
• Max Amperage: 14 Amps
• Color Code: Red/Black

Data Pair

• Wire: 2x20 (0.81mm) (AWG)
• Characteristic Impedance: 120 Ohms +/- 10%
• Capacitance: 10.75 pF/ft
• Color Code: White/Blue

Approvals

• UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
• CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC-61162-3

The Maretron High-Performance Bulk Cable, part number DG1-100C, is a 100-meter gray cable designed for reliable data and power transmission in professional IT and marine environments. This bulk cable features a PVC outer jacket and includes three levels of shielding: an overall foil shield, a dedicated foil shield for the power pair, and another for the data pair, ensuring enhanced signal integrity. It is constructed with 2x16 AWG wires for power (Red/Black) and 2x20 AWG wires for data (White/Blue), alongside a 20 AWG drain wire. The cable is suitable for NMEA 2000 applications and holds UL and CSA approvals, including PLTC 75 deg C Sunlight Resistant and CMX-OUTDOOR-CMG ratings, indicating its durability and safety compliance for various installations.
