Product Overview

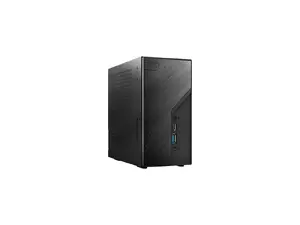

ASRock DESKMINI X300W AMD X300 mini PC Barebone AMD AM4 Socket W/O CPU HDMI,DisplayPort, D-Sub Gigabit LAN 155 x 155 x 80 mm (1.92L)
Technical Specifications
CPU
- Supports AMD AM4 Socket CPUs (Renoir, Picasso, Raven Ridge, up to 65W) Memory
- Supports 2 x SO-DIMM DDR4 Memory, Max. 64GB
- AMD Ryzen 4000 series 3200MHz
- AMD Ryzen 3000/2000 series 2933MHz Chipset
- AMD X300 Graphics Output
- HDMI(4K at 60Hz)
- DisplayPort, D-Sub Audio
- 1 x Head Phone with MIC Jack, 1 x MIC-In (RealtekALC233) Front USB
- 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A Rear USB
- 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A, Storage
- 2 x SATA3 with Power connectors (RAID 0/1)
- 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot
- 1 x Ultra M.2 (2280) Slot
- PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU)
- PCIe Gen3 x2 (Athlon 2xxGE series APU) LAN
- Gigabit LAN (RealtekRTL8111H) WLAN
- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module Connectors
- 1 x USB 2.0 Header
- 1 x Front Panel Header
- 2 x 4-Pin fan connectors (CPU, SYS)
- 1 x DC-In Jack (Supports 19V Power Adapters)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Chassis Intrusion Header (2-Pin)
- 1 x Audio Header (4-Pin) Accessory
- 2 x SATA Data with Power Cable
- 1 x 120W/19V adapter
- 1 x Screws Pack Item Dimension (L"xW"xH")
9 x 9 x 8
Weight
5 lbs
Warranty Information
NA
