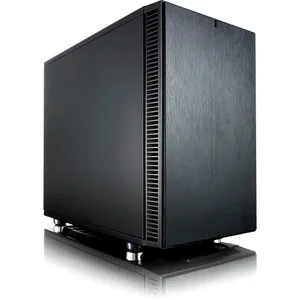

DEFNANOSBK - Fractal Design Case FD-CA-DEF-NANO-S-BK Define Nano S 2x3.5 ITX USB3.0 Black Retail

Designed for silent computing
This case includes two Dynamic Series fans with both bottom and front intakes protected by easy-to-clean, removable dust filters. With its mounting capabilities for simultaneous radiators and unobstructed airflow path, the Define Nano S can cool enthusiast-level components.
Equipped with Fractal Designs signature ModuVent technology on the top vents and sound dampening throughout, the Define Nano S can run a powerful system quietly, a hallmark of the Define series.
Key features
User-friendly construction compatible with full-size components and with superior cable management
Flexible storage options with room for up to four drives
Accommodates a variety of radiator sizes and includes brackets for reservoir and pump mounting
Features two Dynamic Series fans 1 GP-12 and 1 GP-14 with an adapter included for motherboards with limited fan headers
Featuring an open interior allowing an unobstructed airflow path from the front of the case to the rear exhaust
Easy-to-clean filters on the bottom and front, spanning the PSU position, with the bottom filter ejecting from the front for easy-access

Specifications
3.5" HDD/2.5" SSD positions
2
2.5" dedicated SSD unit positions
2 (fits SSDs up to 13 mm thick)
Expansion slots
2
Front ports
2x USB 3.0, Audio in/out, Power button with LED (blue), HDD activity LED (blue), Reset button
Total fan mounts
6
Front fan
2x 120/140 mm (included is 1 Fractal Design Dynamic GP14 fan at 1000 RPM)
Top fan
1x 120/140 mm
Rear fan
1x 120 mm (included is 1 Fractal Design Dynamic GP12 fan at 1200 RPM)
Bottom fan
1x 120 mm
Dust filters
Front fans, Bottom fans (ejects from the front of the case)
Cable routing grommets
Yes
Fixed velcro straps
Yes
Captive thumbscrews
Both side panels, rear HDD/SSD brackets
Left side panel
Industrial sound-dampened steel
Right side panel
Industrial sound-dampened steel
Compatibility
Power supply type
ATX
Motherboard compatibility
ITX
Front radiator
120/240 mm or 140/280 mm (max width 147 mm, max length 312 mm some radiators extend beyond the screw holes)
Top radiator
120/240 mm (max component height on motherboard 35 mm. Big heat sinks on RAM or power regulators around CPU could conflict with this restriction.)
Rear radiator
120 mm (max width 125 mm some radiators extend beyond the screw holes)
Bottom radiator
120 mm (max thickness and length: 85 mm x 160 mm)
PSU max length
160 mm
GPU max length
315 mm with front fans mounted (cards wider than the dual slot bracket are not recommended)
CPU cooler max height
162 mm
Cable routing space
17-35 mm
Max recommended GPU thickness
39 mm
Other
Package contents
Define Nano S computer case, User manual, Accessory box
Additional information
Available for System Integrators
Item Dimension (L"xW"xH")
17 x 11 x 20

Weight
27 lbs

Warranty Information
2 years
