SKU: TFXA784VTH |  Mfg. Part: DCA16810-520  | UPC: 029054012173  |
 1 Reviews  |     Share

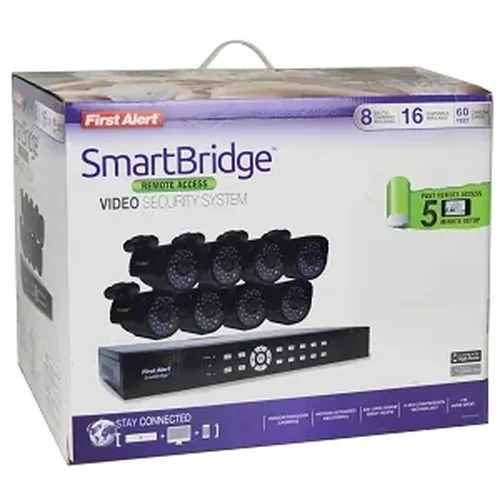

First Alert DCA16810-520 SmartBridge DCA16810-520 16-Channel 1TB DVR SecuritySystem w/8 520TVL Indoor/Outdoor IR Cameras

Out of Stock
Condition: New

$217.42  $293.52
 Free Shipping for this Item

Product Overview

  • Notes:
  • Model: DCA16810-520
  • UPC: 0 29054 01217 3
  • Product Requirements:
  • Power outlet
  • VGA display
  • RJ-45 Ethernet LAN port

Technical Specifications

  • First Alert SmartBridge DCA16810-520 16-Channel 1TB DVRSecurity System
  • General Features:
  • Color: Black
  • Easy to install video security system
  • 16-Channel DVR
  • 1 Terabyte hard drive installed
  • Includes (8) indoor and outdoor 520-TVL bullet-style cameraswith an 80-foot night vision range and (30) infrared LED
  • Eliminate port-forwarding with our 5-minute fast & secureremote access
  • Offers the fastest setup available in the market for mobile,tablet & computer viewing
  • Multi tasking capability with our convenient """"pop up"""" windowfeature. This allows you to move your live video feed around yourscreen so you can continue to read email, work in a spreadsheet orsurf the web- all while still monitoring your system
  • Records at D1 (640x480) for higher picture quality and CIF(320x240) for maximum recording time
  • For a trusted secure connection, this system uses US basedcommercial grade servers which provide a secure link between thenetwork & your security system
  • This system has remote PTZ capability (PTZ camera notincluded). The software allows you to control the camera angle &zoom with a simple interface
  • Remote viewing though PC, MAC, iPhone, iPad, Android and liveviewing through the free SmartBridge mobile app
  • DVR Specifications:
  • Video Compression: H .264
  • Video System: NTSC/PAL (Default is NTSC)
  • NTSC Display Resolution: Single channel D1: 640 x 480; MultiChannel CIF: 320 x 240
  • Backup: H.264 file via USB flash/ USB disk/CD/DVD-RW &Network
  • USB interface: USB 2.0 for Mouse and File Backup / Upgrade
  • PTZ Control: Built-in RS485 / Supports PELCO
  • Power Voltage: DC 12V
  • Ports:
  • Sixteen (16) BNC video inputs
  • One (1)  BNC video output
  • Two (2) RCA audio inputs
  • One (1) RCA audio output
  • One (1) RJ-45 Ethernet port
  • One (1) VGA
  • Two (2) USB 2.0
  • RS485
  • Alarm: 4 input, 1 output
  • Camera Specifications:
  • Image Sensor: NTSC: 1/3.6"" CMOS
  • Horizontal Resolution: 520TVL
  • Camera Placement: Indoor/Outdoor
  • Number of Infrared LEDs: 30
  • Night Vision Range: Up to 80-ft
  • Active Pixels: 656 (H) x 492 (V)
  • Lens: 6mm
  • Pixel Size: 6.0um x 6.0um
  • White Balance: Auto
  • Signal/Noise Ratio:  ≥ 48dB
  • Gain Control: Auto
  • Minimum Illumination: 2 Lux (color), 0 Lux (IR on)
  • Recording Modes:
  • Record Modes: Schedule/Motion Recording/SensorTriggered/Manual/Remote Recording
  • Feature Recording: 1 to 6 settings
  • Recording Pack Time: 1 to 60 minutes Selectable
  • Record Resolution: NTSC: CIF (355 x 240) / HD1 (704 x 240)
  • Record Frame: NTSC: NTSC 1-30fps
  • PlayBack:
  • Display Modes: Single/Quad/Eight/Nine/Sequential
  • Playback Search: Time & Date, Event Type, Scheduled, Motion,Alarm, Manual
  • Display Resolution: NTSC: 640 x 480
  • Display Frame Rate: NTSC: 240fps
  • Playback Mode: Normal Play/Fast Forward/Fast Rewind/Frame byFrame
  • Power Adapter Specifications:
  • DVR: Input: 100-240V, 50/60Hz, 1.5A Max, Output: 12V,4000mA
  • Camera: Input: 100-240V, 50/60Hz, 1.5A Max, Output: 12V,3000mA
  • Dimensions:
  • DVR: 2.25 x 14.69 x 11.25-inches (H x W x D)
  • Camera: 2.8 x 2.8 x6.7-inches (H x W x D)

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • FIRST ALERT
  • DCA16810-520
  • B00EMKD1B4
  • 029054012173
  • New
  • 25.45 lbs
  • 17 X 0 X 0
  • Feb 19, 2026
  • May 08, 2019
Product Identifiers: Brand: First Alert • Part #: DCA16810-520 • UPC: 029054012173 • ASIN: B00EMKD1B4 • Category: Other Disney Pins & Patches

First Alert DCA16810-520 SmartBridge DCA16810-520 16-Channel 1TB DVR SecuritySystem w/8 520TVL Indoor/Outdoor IR Cameras
