Special Order
Ships in 1-2 weeks
Condition: New

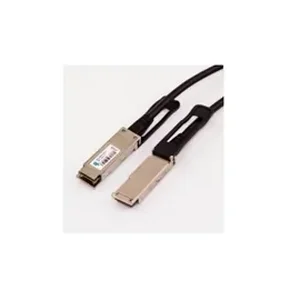

The PacTech 40G QSFP+ Passive Twinax Cable is designed for high-speed data transmission in data centers and network applications. It provides a reliable connection between switches, routers, and servers while maintaining excellent electrical performance.
With a robust design featuring die-cast zinc shells and high-quality materials, this cable offers durability and longevity suitable for demanding environments.
| Plug | Die-cast zinc shells, nickel-plated |
|---|---|
| PCB | Proprietary laminate with gold-plated contact pads |
| Pull tab | Santoprene, black |
| Latch mechanism | Die-cast zinc |
| Cable | 8 individually shielded differential pair cables |
| Wire gauge | 30 AWG (0.5-2.5M), 28 AWG (3M-3.5), 26 AWG (4M-4.5M), 24 AWG (5M) |
| Jacket | PVC and LSZH low smoke zero halogen, CL2 or AWM style, CMP upon request |
| Electrical Performance | Differential impedance of 100 ohm ± 5 ohm at 30 ps rise time (20-80%) |
| Withstanding voltage | 300 V DC |
| Current rating | 0.5 amps maximum per contact |
| Mechanical Performance | Durability: 250 cycles, Mating force: 40 N maximum, Cable axial pull force: 90N minimum |
| Industry Standards | SFF-8074i, SFF-8431, SFF-8436, IEEE 802.3 Gigabit-Ethernet standard, QSFP+ Copper and Optical Modules, SFP Small Form Factor Pluggable Transceiver rev 1.0 Enhanced SFF Pluggable |
| Operating temperature | 20°C to 80°C |
