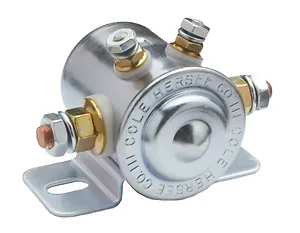

Cole Hersee CW69454 Continuous Duty Solenoid 85 AMP - 12V

Continuous Duty Solenoid - 12V

Minimizes arcing and contact oxidation, maintains highp erformance. Universal use with part numbers available to handle loads up to 200A.

PVC Coated option available for a more environmentally sealed product. Coated solenoids withstand moisture and dust to IP66.

Mechanical Specifications:

• SPST Normally open contacts
• Plated steel housing. Hexnuts and washers included
• Large (power circuit) battery studs; copper
• 5/16” -24 thread
• Small (control circuit) coil studs; steel 10-32 thread
• Bracket mounting holes 5/16 X 19/32” (7.9 X 15.1mm) on
• 2 13/64” centers (56.0mm)
• Available with PVC coated exterior or Potted Coil interiors
• for harsh environments or vibration resistance
• Caution: Never unscrew the inner hexnuts on the studs
• These keep the stud and inner wiring in place
