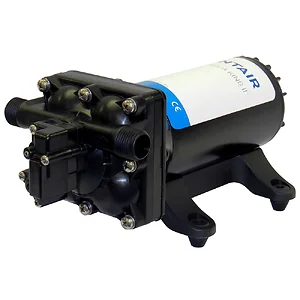

CW66555 - Shurflo by Pentair AQUA KING™ II Supreme 5.0 (24 VDC) Fresh Water Pump w/Strainer & Fittings

• Sealed Switch
• Sealed Motor
• Corrosion Resistant Electro
• Coated Motor
• Independent Chambers
• Built-in Check Valve
• Co-Molded Diaphragm
• Adjustable Switch & By-Pass
• Self-Priming up to 6 Feet
• Dry Run Capability
• Thermally Protected
• Ignition Protected, CE

• 24 VDC
• 5.0 GPM [18.9 LPM]
• 7 Amps (Max.)
• 55 PSI [3.8 BAR]
• Intermittent Duty
• Multi-fixture Applications
• 1/2" NPS-M Inlet/Outlet

The SHURFLO AQUA KING� II Supreme 5.0 Fresh Water Pump (part number CW66555) is a 24 VDC pump designed for marine applications requiring consistent water pressure across multiple fixtures. This pump delivers a flow rate of 5.0 GPM at 55 PSI, suitable for environments where stable water delivery is critical. Its mechanical bypass function allows for variable flow rates based on demand, eliminating the need for an external accumulator. The unit features a heavy-duty, electro-coated motor with O-ring sealed end bells and sealed wire entries, engineered for resilience in harsh marine conditions. It is capable of dry running without sustaining damage, and includes an inlet strainer and 1/2" hose barb fittings for installation. Key safety features include ignition and thermal protection. This pump is intended for IT and facilities managers overseeing water systems in marine vessels or similar multi-fixture 24VDC environments where reliability and consistent pressure are primary concerns.
